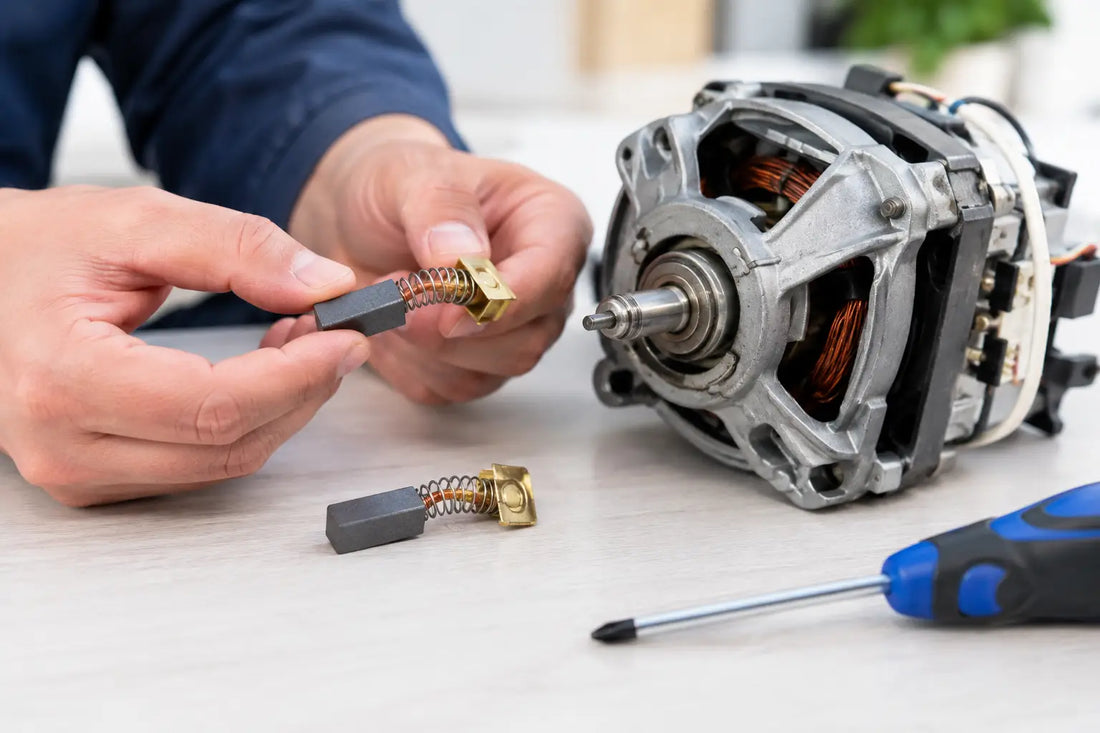

Carbon Brushes Replacement Made Simple
A washing machine or power tool that stops mid-cycle, a vacuum that has lost power, or a mixer that only runs intermittently can all point to the same small wearing part. Carbon brush replacement is often a straightforward, cost-effective repair - provided the motor actually uses brushes and the new pair matches correctly.
Carbon brushes transfer electrical current from the fixed wiring to the spinning armature inside a motor. They are designed to wear down over time. Once they become too short, stick in their holders, or lose spring pressure, the motor may run poorly or stop altogether. Replacing them can restore normal operation without replacing the complete motor.
When carbon brushes replacement is likely needed
Brushed motors are common in many older and some current appliances, particularly washing machines, tumble dryers, vacuum cleaners, kitchen mixers and certain fans, power tools etc. Not every appliance motor has carbon brushes. Induction, brushless and electronically controlled motors do not use them, so confirm the motor type before ordering parts.
Common brush-wear symptoms include intermittent starting, reduced power, excessive sparking visible through motor vents, a burning electrical smell, or a motor that hums but will not turn. A washing machine may fill and drain normally but fail to spin. A vacuum may cut in and out when moved or tapped.
These signs are useful clues, not a final diagnosis. A blocked pump, worn belt, failed capacitor, damaged wiring, faulty switch, control board fault or seized bearings can produce similar symptoms. Check the simple mechanical issues first. If the motor is accessible and uses brush holders, inspecting the brushes gives a much clearer answer.
Check the brushes before ordering
Disconnect the appliance from the mains before removing panels or touching the motor. Do not rely on the appliance being switched off at its controls. If the appliance is hard-wired, or you are not confident working around mains wiring, use a qualified appliance technician.
Most motors have two brushes, positioned opposite each other on the motor housing. Remove one brush at a time so you can compare its orientation and fitment. A serviceable brush normally has a substantial length of carbon remaining, moves freely in its holder and has a spring that still applies consistent pressure.
A brush is due for replacement when the carbon section is very short, cracked, chipped, heat-damaged or worn unevenly. There is no single replacement length for every motor, but brushes approaching their wear limit should be replaced as a pair. Fitting one new brush beside one heavily worn brush can cause uneven contact and poor motor performance.
Also inspect the commutator - the copper segmented surface the brushes run against. It should look reasonably smooth and even. Dark staining can be normal, but deep grooves, burnt segments, raised bars or heavy pitting suggest a bigger motor problem. New brushes may not last if the commutator is badly damaged.
Match fitment, not just appearance
Carbon brushes can look nearly identical while having different dimensions, terminals, spring arrangements and holder shapes. A close-looking brush that is too wide can jam. One that is too narrow can chatter, arc and wear rapidly. Incorrect terminal style can also leave you modifying wiring that should be left as designed.
Use the appliance model number and, where possible, the motor number from the motor label. Then compare the old brush against the replacement details. The key checks are carbon width, thickness and length; holder shape and mounting method; connector or terminal type; wire length and routing; spring style; and the angle or profile of the brush face.
The brush face matters more than it first appears. Many brushes are supplied with a shaped or angled end so they contact the commutator correctly from the start. Do not reverse a directional brush or grind its face to make it fit. Correct fitment saves time and avoids damage to the armature.
For hard-to-find brush sets, clear measurements and motor numbers are usually more useful than the appliance brand alone. PARTSNZ carries practical replacement parts for repair jobs where getting the correct component quickly matters.
How to replace appliance carbon brushes safely
Take photos before disconnecting terminals or removing the motor. This is particularly helpful where wiring runs through tight spaces or brush holders have clips and covers. Keep screws, clips and brush springs together - small parts are easy to lose inside an appliance cabinet.
Start by unplugging the appliance and allowing the motor to cool. Remove the required access panel, then release the brush terminal and retaining clip or screw. Withdraw the old brush carefully. If it catches, do not force it with a screwdriver as the holder can crack or distort.
Clean loose carbon dust from the brush holder and surrounding motor area using a dry, soft brush or a vacuum held nearby. Avoid compressed air, which can spread fine conductive dust through the appliance. Do not spray cleaners into the motor, and do not lubricate the brush holder. Brushes must slide freely, but oil attracts dust and can contaminate the commutator.
Fit each new brush in the same orientation as the original. It should move smoothly in the holder under spring pressure. Reconnect terminals firmly, route wires away from moving parts, and refit all covers before testing. Never run a mains appliance with guards or access panels removed unless a qualified technician is carrying out controlled testing.
Expect a short bedding-in period
Fresh brushes may need a little running time to bed into the commutator surface. During the first few minutes, a small amount of sparking can be normal. The appliance may sound slightly different until the contact face settles.
Heavy sparking, repeated tripping, strong burning smell, loud grinding or no improvement are not normal bedding-in signs. Switch off immediately and investigate. Continuing to run a motor with severe arcing can damage the commutator, wiring or control components.
If the appliance is safe to operate and the manufacturer does not specify another process, run a brief unloaded or light-load test first. On a washing machine, that may mean checking motor operation on a short cycle before committing to a full load. Listen for smooth acceleration and confirm there are no rubbing noises, loose connectors or error codes.
Common replacement mistakes that cost more later
The most common mistake is assuming any carbon brush of a similar size will do. It may physically fit but have the wrong grade of carbon, terminal, spring pressure or contact angle. Appliance motors are less forgiving than they look, especially when electronic speed controls are involved.
Another is replacing brushes without checking why they wore abnormally fast. Normal wear happens gradually over years. If a brush has broken, burnt badly or worn down unusually quickly, inspect the commutator, bearings and motor alignment. A rough or wobbling armature can destroy a new brush set in a short time.
It is also worth checking the drive system while the appliance is open. A loose or damaged belt, seized drum bearing, blocked vacuum head or jammed fan can overload the motor and make a brush problem appear worse. Addressing the root cause is usually cheaper than fitting the same parts twice.
Finally, avoid treating carbon dust as ordinary household dust. It can be messy and electrically conductive. Clean it carefully, keep it away from connectors and circuit boards, and wash hands after the repair.
When to repair and when to call a technician
Replacing accessible brush assemblies is within reach for many capable DIY repairers. It is a sensible repair when the appliance or power tool is otherwise sound, the correct brushes are available, and inspection shows a clean commutator with no serious motor damage.
A correctly matched set of carbon brushes can give a useful appliance several more years of service. Take the extra few minutes to confirm motor numbers, dimensions and brush orientation before fitting them - that is usually the difference between a quick repair and a repeat job.
