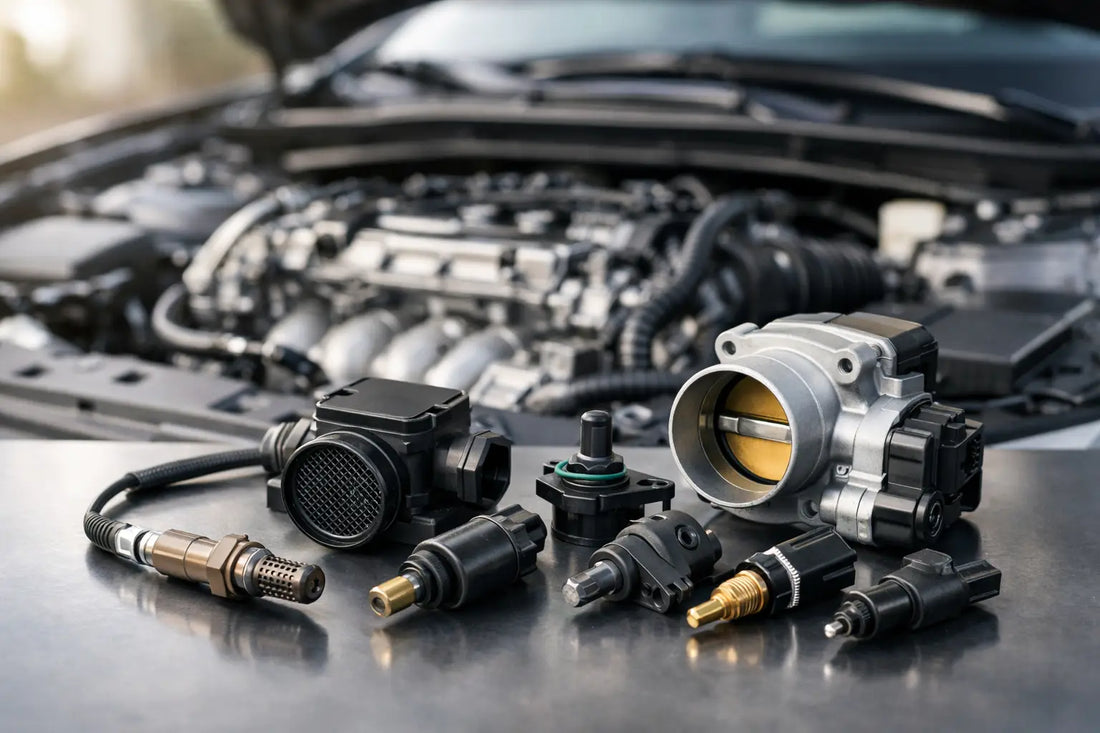

Engine Management System Sensors and Actuators

A modern engine can crank, idle badly, burn too much fuel, or drop into limp mode because of one small signal going missing. That is why engine management system sensors and actuators matter so much. They are the parts that tell the ECU what the engine is doing, and the parts the ECU uses to respond in real time.

If you are chasing a fault on a car, ute, bike or marine engine, it helps to know which side of the system you are dealing with. A sensor reports a condition such as temperature, pressure, position or airflow. An actuator carries out an instruction such as opening, closing, adjusting or switching. When either one fails, the symptoms can overlap, which is why misdiagnosis is common.

What engine management system sensors and actuators do

The engine management system is built around inputs and outputs. Sensors are the inputs. They feed the ECU a constant stream of data so it can calculate fuel delivery, ignition timing, idle control, emissions settings and throttle response. Actuators are the outputs. They are the components the ECU commands to make changes.

In practical terms, the ECU is only as good as the information it receives. If a crankshaft position sensor drops out, the ECU may not know when to fire the injectors or coils. If an injector sticks or an idle control valve stops responding, the ECU may know there is a problem but still be unable to correct it.

That matters for more than just performance. Faults in this system can affect starting, fuel economy, emissions, drivability and even transmission behaviour on some vehicles. On newer applications, one bad reading can trigger a chain reaction of warning lights and stored codes.

Common sensors in an engine management system

Some sensors fail more often than others, either because of heat, vibration, contamination or plain age. The crankshaft and camshaft position sensors are high on the list because they operate in a harsh environment and are critical for timing. When one starts failing, the engine may crank without starting, cut out when hot, or restart only after cooling down.

Airflow and load sensors are another regular trouble spot. A mass air flow sensor measures the amount of air entering the engine, while a manifold absolute pressure sensor reads intake vacuum or boost pressure. If either sends the wrong signal, fuel trims can go out, idle can become rough, and the vehicle may hesitate under load.

Temperature sensors also do more work than many people realise. The coolant temperature sensor affects cold-start enrichment, fan operation and warm-up strategy. An intake air temperature sensor helps the ECU adjust fuelling based on air density. When these sensors read incorrectly, the engine may run rich, idle high, or use more fuel than it should.

Oxygen sensors, often called O2 sensors or lambda sensors, monitor exhaust gases so the ECU can fine-tune the air-fuel ratio. A tired oxygen sensor can cause poor economy, sluggish response and emissions faults. On some vehicles, a failed sensor may not make the engine feel terrible straight away, which is why it can be missed until fuel use climbs.

Throttle position sensors and pedal position sensors are also central to many modern systems. In drive-by-wire vehicles, the ECU compares multiple signals for safety. If those signals do not agree, the vehicle may go into reduced power mode.

Common actuators and how they fail

Actuators tend to be the parts that physically do the work. Fuel injectors are among the best-known examples. The ECU tells them when to open and for how long. If one injector clogs, leaks or sticks, you can end up with a misfire, hard starting, fuel smell or uneven idle.

Idle air control valves are common on older electronically managed engines. They regulate bypass air at idle. When they carbon up or fail electrically, the engine may surge, stall at the lights, or idle too high. On newer vehicles, the electronic throttle body often handles this role instead.

Ignition coils are another key actuator in the broader engine control process. The ECU triggers the coil, and the coil generates the high voltage needed for spark. A weak or failing coil may only show up under load, which is why some vehicles idle fine in the driveway but break down on the road.

Variable valve timing solenoids, EGR valves, purge valves and turbo boost control solenoids also fall into the actuator category. These parts can stick because of oil contamination, carbon build-up or internal electrical failure. When they do, symptoms range from rough idle and flat spots to overboost, underboost or fault codes that seem unrelated at first glance.

Why symptoms often point to more than one part

This is where diagnosis gets tricky. A failed sensor can make a good actuator behave badly, and a failed actuator can make a good sensor report abnormal values. For example, a vacuum leak may cause lean codes that look like an oxygen sensor problem. A weak fuel pump may trigger misfire symptoms that lead people to blame coils or injectors.

That is why fault codes should be treated as clues, not automatic parts lists. A code for a camshaft position sensor does not always mean the sensor itself is dead. It could be damaged wiring, poor connector contact, timing issues, or in some cases a crank sensor problem affecting correlation.

Heat-related faults are another example. A sensor may test fine cold, then fail once engine bay temperatures rise. Likewise, an actuator may work intermittently because of internal winding damage that only shows under certain conditions.

A practical way to diagnose engine management faults

Start with the symptom, not the part you hope it is. If the engine cranks but does not start, check whether you have spark, injector pulse and rpm signal first. That quickly narrows the likely fault area. If it starts but runs rough, look at live data where possible - coolant temp, airflow, throttle position, fuel trims and oxygen sensor activity can tell you far more than a stored code alone.

Visual checks still matter. Broken plugs, oil-soaked connectors, rubbed-through wiring and corrosion are common on older vehicles and marine applications. A new sensor will not fix a damaged loom. The same goes for poor grounds and weak battery voltage, which can create false symptoms across multiple systems.

When replacing parts, match by application details rather than guessing off appearance. Similar-looking sensors can have different resistance ranges, connector pin-outs or calibration values. That matters for fitment and for how the ECU interprets the signal.

When replacement makes sense

Some parts can be cleaned or tested, but not every cheap fix is worth the time. If an oxygen sensor is slow and high-kilometre, replacement is often the sensible option. If a throttle body or idle valve is carboned up, cleaning may restore operation. If a crank sensor is cutting out hot, replacement is usually the better call because intermittent timing faults are hard to trust once they start.

For repairers and DIY owners alike, the main goal is getting the machine back to reliable service without wasting money on the wrong part. That is where having the correct replacement available locally helps. For practical buyers in New Zealand, fast access to common engine sensors, ignition parts and electrical components can make the difference between a one-day fix and a week of downtime.

Choosing the right engine management part

The safest approach is to confirm the original part number, vehicle details and engine code before ordering. That is especially important where one model ran multiple engine variants, or where aftermarket and OE-style parts sit side by side. It is also worth checking whether the fault is common enough to justify replacing related wear items at the same time, such as connectors, seals or ignition components.

Price matters, but so does reliability. The cheapest option is not always the best value if it creates more fault-finding later. On the other hand, not every repair needs dealer-priced parts. For many common engine management repairs, a quality replacement part that matches the application properly is the sensible middle ground.

If you are dealing with engine management system sensors and actuators, clear diagnosis and correct fitment save the most time. Get the signal path right, replace what has actually failed, and the engine usually tells you pretty quickly when you are back on the money.
