Choosing the Right Fuel Pump for Your Boat
A fuel pump for boat use is not a part to choose by appearance alone. A pump with the wrong pressure, flow rate or fitting size can leave an outboard surging at speed, make an inboard hard to start, or create a fuel leak where there should not be one. When the boat is on the water, a small fuel-system fault quickly becomes a day cut short.
The right replacement comes down to the engine and fuel-system setup, not simply the boat brand. Check how the original pump operates, what fuel pressure the engine requires, and whether it is a lift pump, an electric supply pump or a mechanical diaphragm type. Getting those basics right makes the job far more straightforward.
Start With the Type of Fuel Pump for Boat Use

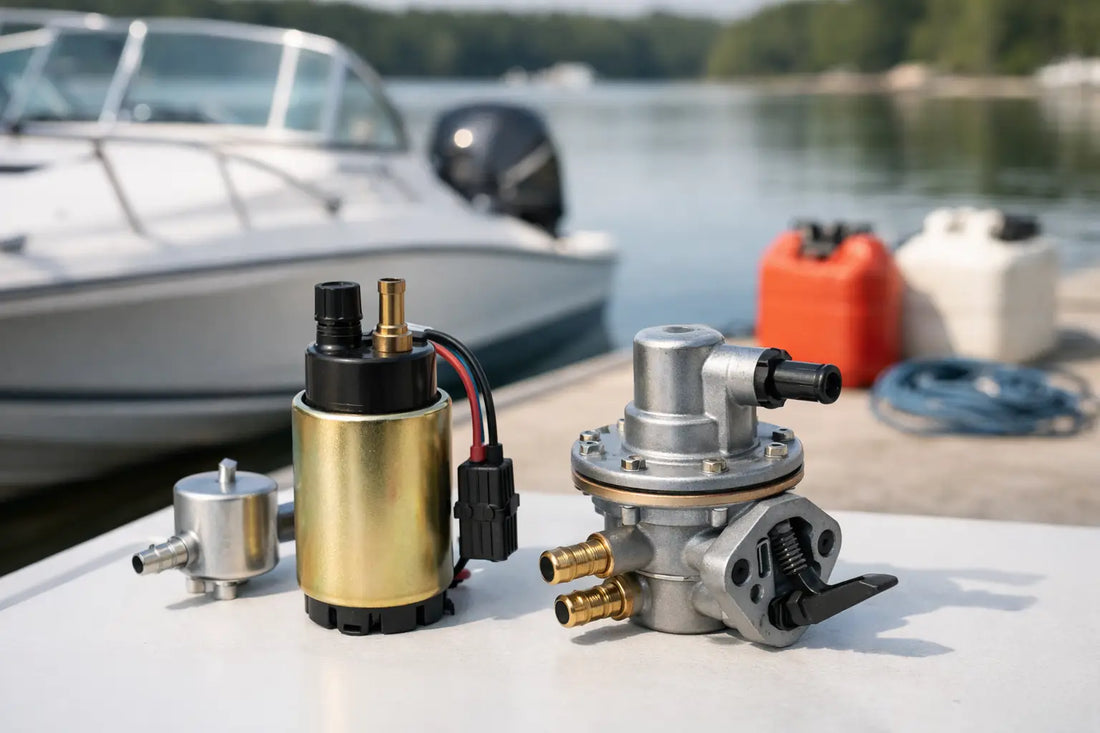

Marine fuel pumps generally fall into two groups: mechanical pumps and electric pumps. Mechanical pumps are common on many older petrol engines and some outboards. They are usually driven by engine vacuum, crankcase pulses or a mechanical cam arrangement. Their simple design is reliable, but a split diaphragm can cause poor running, fuel leaks or an engine that will not start.
Electric fuel pumps are more common on fuel-injected petrol engines and many diesel installations. These pumps need the correct electrical supply and must provide fuel at the pressure specified by the engine manufacturer. An electric pump designed for a carburetted engine may only supply low pressure, while an EFI pump can deliver much higher pressure. Swapping one for the other can cause flooding, poor performance or damage to fuel-system components.
Before ordering, identify whether your existing pump is mounted externally along the fuel line, fitted to the engine, installed in a fuel module, or integrated into a vapour separator tank. A clear photo of the old part, its measurements and any numbers stamped on the housing are useful when confirming a replacement.
Pressure and Flow Must Match the Engine
Fuel pressure is one of the most important checks. Carburetted petrol engines commonly use a low-pressure pump, often only a few PSI. Electronic fuel injection normally requires much more pressure and a consistent supply. Diesel systems vary widely depending on whether you are replacing a low-pressure lift pump or a high-pressure injection component.
Flow rate matters as well. A pump may run and still be unsuitable if it cannot move enough fuel when the engine is under load. This often shows up as an engine that idles cleanly at the ramp but loses power, hesitates or cuts out at higher revs. A pump with excessive flow or pressure is not automatically better. The system must be able to regulate it safely.
Use the engine service information wherever possible. If the old pump markings show voltage, pressure, flow rate or a part number, compare all of them. For an aftermarket replacement, fitment information should match the engine make, model and horsepower or engine capacity, rather than just the year of the boat.
Do Not Ignore the Fuel Regulator
Some fuel systems use a separate regulator to maintain pressure at the fuel rail or carburettor. Others have regulation built into the pump module or vapour separator arrangement. If a new pump produces more pressure than the regulator can handle, the result may be rich running, fuel odour, black exhaust smoke or fuel leaks.
Likewise, a weak pump may look like a regulator issue. Testing fuel pressure with a suitable gauge is the quickest way to separate a supply problem from an ignition, injector or carburettor fault. Work carefully around petrol systems and keep all ignition sources well away from the work area.
Marine Suitability Is Not Optional
A pump used in a boat needs to suit the marine environment. Moisture, salt air, vibration and enclosed engine bays are harder on electrical connections and fuel-system parts than most road vehicles. Where a petrol engine is installed in an enclosed compartment, use a pump specified for marine use and appropriate for that installation.
The electrical side matters just as much as the pump itself. Corroded terminals, damaged wiring, poor earth connections and weak relays can reduce pump voltage. An electric pump may still make a noise while failing to deliver enough fuel. Check voltage at the pump under load, not only with the key switched on.
Use fuel hose rated for marine fuel service, secure it with suitable clamps and replace hardened or cracked sections while access is available. Avoid mixing random fittings, hose sizes and adaptors unless they are confirmed compatible. A tidy installation is easier to inspect and less likely to develop a leak after a few rough trips.
Check the Full Fuel Path Before Replacing Parts
A failing fuel pump is not always the actual fault. Restricted filters, blocked tank breathers, contaminated fuel and air leaks on the suction side can all produce similar symptoms. Replacing the pump without checking these items may get the engine running briefly, then leave the same problem in place.
Start at the tank and work forward. Check that the tank breather is clear, the fuel is fresh, the pickup is not blocked and the hose has not softened or collapsed internally. Inspect the primer bulb on outboard installations too. A bulb that will not stay firm, is fitted in the wrong direction or has a damaged check valve can cause fuel-starvation symptoms.
Water-separating filters deserve particular attention. If the filter bowl contains water, rust-coloured debris or heavy sediment, clean up the cause before fitting a new pump. Water and contamination can shorten the life of a replacement pump and may affect injectors or carburettor passages further down the system.
Common Signs the Pump May Be Failing
A fuel issue does not always mean the pump is dead. Intermittent faults are common, especially when wiring or diaphragms are ageing. The following signs make a fuel supply check worthwhile:
- The engine cranks for longer than normal before starting, especially after sitting.
- It runs well at idle but stumbles, surges or loses power under load.
- The primer bulb collapses, fuel pressure drops, or the pump becomes unusually noisy.
- The engine cuts out and restarts only after cooling down or manually priming the fuel line.
- There is visible fuel seepage, a strong fuel smell or fuel found in the pump vacuum line.
Fitment Details That Save Time Later
When comparing a replacement fuel pump for boat applications, confirm the inlet and outlet hose sizes, port direction, mounting-hole spacing and electrical connector type. Even a pump with the right pressure may be inconvenient or unsafe to fit if the outlets point the wrong way or require hose to bend sharply.
For electric pumps, check the voltage and polarity. Most smaller marine systems use 12V, but do not assume. Also confirm whether the pump is intended for continuous operation and whether it needs a pre-filter. Many pumps rely on clean fuel for cooling and lubrication, so a blocked or missing filter can reduce service life.
If you are replacing a mechanical diaphragm pump, inspect the mounting surface and gasket condition. A poor seal can create an air leak or oil leak, depending on the engine design. Tighten fasteners evenly and do not overtighten a light alloy housing or cover.
Keeping the old pump until the new one is installed is sensible. It gives you a direct reference for hose positions, mounting orientation and connector style. Take photos before removing anything, particularly where several fuel hoses and electrical leads run close together.
Safe Replacement and First Start Checks
Shut off the fuel supply where possible and disconnect the battery before working on an electric fuel system. Catch any drained fuel in an approved container, ventilate the area well and clean spills immediately. Petrol vapour can travel and ignite well away from the source.
After installation, prime the system as required by the engine. On an outboard, this may mean squeezing the primer bulb until firm. On an electric system, cycling the ignition may run the pump briefly and build pressure. Inspect every connection for seepage before starting the engine.
Run the engine and check again at idle. Then, where safe and practical, confirm performance under load rather than assuming an idle test proves the repair. Watch for fuel odour, leaks, erratic running and warning alarms. If there is any doubt about fuel pressure, wiring integrity or suitability in an enclosed petrol-engine compartment, get a qualified marine technician involved.
For a replacement that gets the boat back in service without a long wait, match the pump to the engine details and fuel-system specifications first. PARTSNZ can help practical owners source replacement parts locally, but accurate numbers, measurements and engine information are what make fitment quicker and avoid a second repair.
