How to Repair Windscreen Washer Pump Problems
A washer bottle full of fluid does not help much when the windscreen is covered in road grime, salt spray or bugs. Before booking a workshop, it is often possible to repair windscreen washer pump faults at home with a few basic checks. The key is working out whether the issue is a blocked hose or jet, an electrical fault, or a failed pump.
Washer systems are simple, but access can vary widely. On some vehicles the pump is visible beside the reservoir under the bonnet. On others it sits behind a wheel-arch liner or bumper trim. Take your time, confirm the fault first, and avoid buying parts until you know what has failed.
Start with the symptoms
Turn the ignition on and operate the washer switch while listening near the reservoir. A working pump usually makes a clear whirring sound. If you can hear it but no fluid reaches the glass, the pump may be fine. A blockage, split hose, disconnected line or blocked jets are more likely.
If there is no sound at all, check the simple items before removing anything. Confirm there is sufficient washer fluid in the bottle, inspect the relevant fuse, and try the rear washer if the vehicle has one. Some vehicles use separate pumps for front and rear washers, while others use one reversible pump. A rear washer that works can narrow the fault down quickly.
Fluid leaking under the vehicle or inside the wheel arch when you use the washers often points to a loose hose, cracked reservoir, damaged grommet or failed pump housing. A weak spray that improves when the vehicle is warm may be caused by thickened fluid, contamination or partially blocked jets.
Check the easy blockages first
New Zealand roads can put plenty of dirt into a washer system, especially on work utes, rural vehicles and cars that spend time near the coast. Washer fluid can also leave residue if it has been mixed too strong, frozen, or topped up with unsuitable products.
Start at the jets. Use a fine pin carefully to lift visible debris from the nozzle opening, then rinse the area with clean water. Do not force a large needle into the jet as it can damage the nozzle or alter its aim. If the pump runs, disconnect the hose at a convenient point before the jets and briefly operate the washer. Fluid at the hose but not at the jet confirms a jet blockage.
Next, inspect the hoses along their route. Look for kinks near bonnet hinges, rubbed-through sections, loose joins and hoses that have come away from the pump outlet. On vehicles with a rear washer, the hose may run through the tailgate or rear door. A leak there can leave trim damp or cause fluid to drain into the boot area instead of reaching the rear glass.
If the reservoir contains sediment, drain and flush it before fitting a new pump. Dirt left in the bottle can block the replacement part soon after installation. Refill with proper windscreen washer fluid mixed to suit the label instructions, rather than relying on plain water for everyday use.
How to repair windscreen washer pump electrical faults
A silent pump is not automatically a dead pump. It needs power and earth to run, and a fault in the fuse, wiring, switch or connector can produce the same symptom.
Check the fuse and connector
Find the washer fuse using the vehicle owner's manual or fuse-box diagram. A blown fuse should be replaced with one of the same rating only. If it blows again when the washers are operated, stop there. Repeated fuse failure suggests a short circuit, seized motor or damaged wiring that needs proper diagnosis.
At the pump connector, look for corrosion, water ingress, loose terminals and wires pulled tight or rubbed through. Green corrosion on terminals can create enough resistance to stop a small pump motor working. Clean light corrosion with electrical contact cleaner, allow it to dry, and make sure the connector locks firmly back into place.
Test for voltage
A multimeter or 12-volt test light makes this job more certain. With the connector unplugged, have someone operate the washer switch while you test for voltage at the vehicle-side connector. On many vehicles, power is present only while the switch is held.
If voltage and a good earth are present but the pump does not run, the pump has likely failed. If there is no power, check the fuse again, then trace the wiring and switch circuit. Wiring diagrams and control systems differ between makes, and later vehicles may switch the earth side or control the pump through a body module. If you are not confident testing vehicle electrics, this is the point to use an auto electrician.
Do not run electrical tests with exposed terminals touching bodywork or each other. Keep washer fluid away from connectors and disconnect the battery if you need to repair damaged wiring.

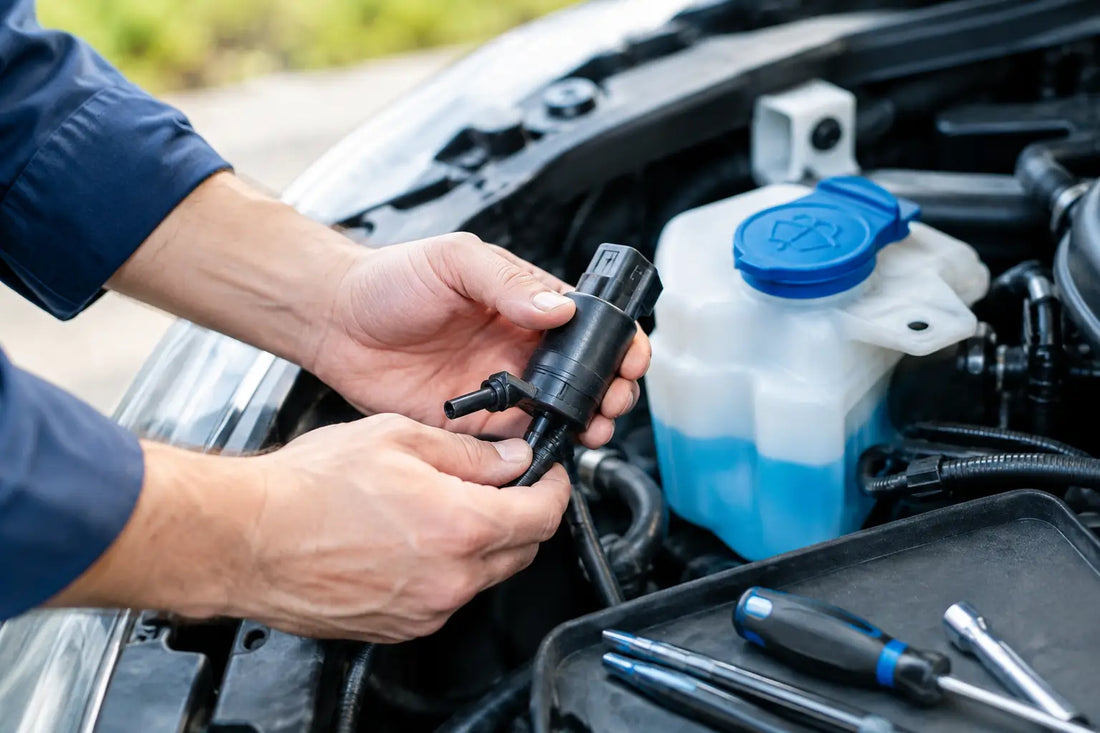

Removing and replacing the pump
Once testing confirms the pump is faulty, replacement is usually more dependable than trying to dismantle the small sealed motor. Internal corrosion, worn brushes and seized shafts are common failures, and most washer pumps are not designed for an economical internal rebuild.
Access is the variable. You may need to remove a wheel, wheel-arch liner, undertray, battery or intake ducting. Support the vehicle safely if a wheel needs to come off. Never rely on a jack alone.
Before pulling the old pump out, place a drain tray underneath and note the hose positions. The pump is often pushed into a rubber grommet in the reservoir, so fluid will spill once it is removed. Disconnect the electrical plug and hoses, then pull the pump straight out with a gentle twisting motion. Avoid levering hard against an old plastic bottle, as reservoirs can crack.
Inspect the rubber sealing grommet. If it is hard, split, swollen or loose, replace it with the pump where possible. A good pump fitted into a worn grommet can still leak. Transfer any hose adaptor or filter screen only if the replacement part does not include one.
Lubricate the grommet lightly with clean washer fluid, not petroleum grease, then press the new pump squarely into place. Reconnect the hoses and plug, refill the reservoir and test for leaks before refitting trim. Let the pump run long enough to purge air from the lines, but do not run it dry for extended periods.
Getting the correct replacement pump
Washer pumps can look alike while having different electrical plugs, outlet sizes, mounting diameters and flow directions. Front-and-rear systems add another complication: a reversible dual-outlet pump may have a different internal valve arrangement from a single-direction front-only pump.
Match the replacement to the vehicle's make, model, year and washer configuration. If available, compare the original pump's part number, connector shape, number of outlets and reservoir grommet diameter. Photos of the old part are useful when checking fitment, particularly if the vehicle has had previous repairs.
For a quick repair, local stock matters. PARTSNZ supplies practical replacement parts for buyers who need to get a vehicle back into service without waiting on an overseas order. Check the listing details carefully and contact the supplier with the vehicle information and original part details if fitment is unclear.
When the pump is not the real problem
Some washer faults sit outside the pump itself. A washer switch can fail mechanically, bonnet wiring can break where it flexes, and rear washer hoses can split inside the tailgate. On a few vehicles, the washer function is integrated into a steering-column switch assembly, which changes the repair scope and cost.
Jet alignment also matters. If the washer works but sprays over the roof, onto the bonnet or only at one side of the screen, adjust the nozzles gently. The aim should cover the swept area without blasting beyond it. Replace cracked or badly blocked jets rather than repeatedly forcing them clear.
Regular use helps prevent problems. Run the washers occasionally, keep the reservoir topped up with suitable fluid, and do not leave contaminated water sitting in the system through winter. A ten-minute check before a long trip can save you from trying to clean a dirty windscreen with nothing but wipers at the worst possible moment.
