When to Replace an Outboard Water Pump Impeller
A weak tell-tale stream can turn a good day on the water into an expensive recovery. The outboard water pump impeller is a small rubber component, but it is central to keeping your engine cool. When it hardens, cracks or loses blades, water flow drops and overheating can follow quickly.
For most outboard owners, the sensible approach is simple: replace the impeller as scheduled, inspect the full pump housing while it is apart, and never assume a stream from the tell-tale means the cooling system is in perfect condition. A steady stream is encouraging, but it does not confirm that the engine is receiving enough cooling water at all speeds.
What an outboard water pump impeller does

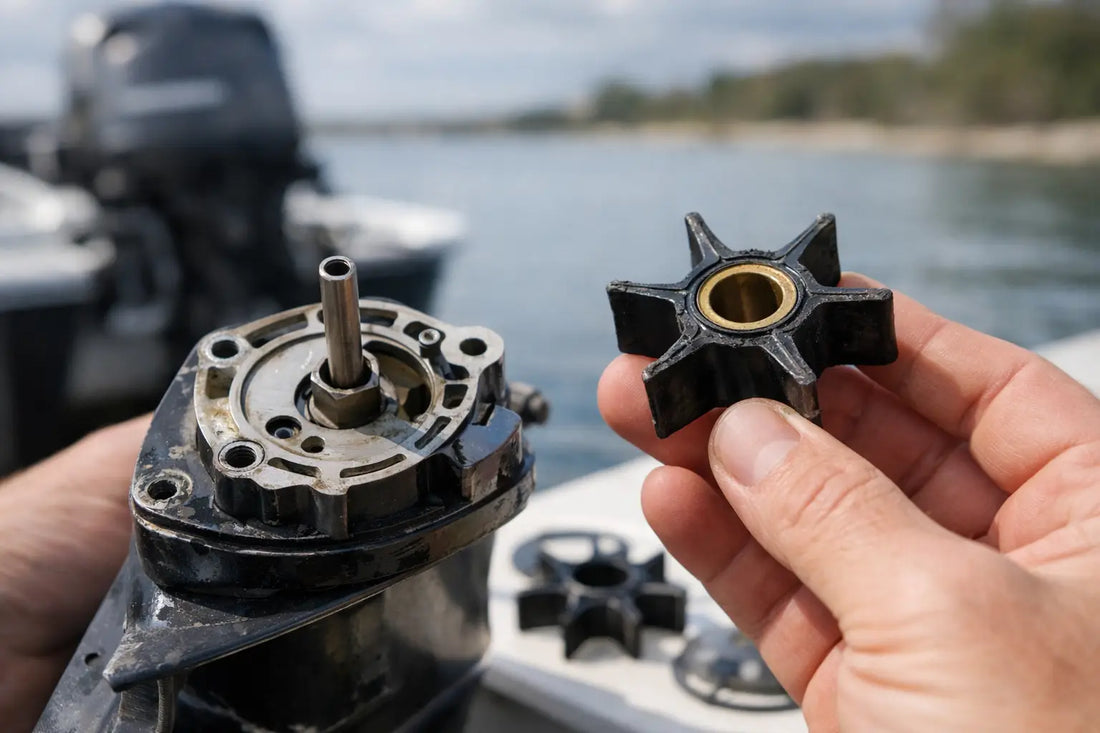

An outboard water pump sits in the lower unit, usually above the gearbox. The impeller has flexible vanes that rotate inside a stainless wear plate and pump cup. As the driveshaft turns, those vanes draw water up through the lower-unit intakes and push it through the cooling passages in the engine.
This is why an impeller can look modest yet cause serious trouble when it fails. It operates whenever the motor is running in the water, often after long periods sitting dry between trips. The vanes can take a set in one direction, become stiff with age or split at the base. Sand, silt, salt deposits and dry starts add further wear.
On many outboards, an impeller service is also the right time to check the pump housing, wear plate, gaskets, seals and water tube grommet. Replacing only the rubber impeller in a scored or warped housing may not restore the water flow you need.
When should you replace the impeller?
A common service interval is every one to three years, depending on the manufacturer, operating hours and where the boat is used. For a boat used regularly in salt water, shallow launches, rivers or silty estuaries, annual inspection or replacement is cheap insurance. A lightly used freshwater boat may be able to follow the longer interval in its owner’s manual.
Time matters as much as engine hours. An outboard that has run only a few times may still have an aged impeller with hardened rubber. Likewise, a motor that has sat unused for several seasons deserves an impeller inspection before a long trip, especially if it has been stored with the lower unit dry.
Replace it sooner if you have bought a used outboard with no clear service history. It is one of the first maintenance jobs worth doing, along with checking gearbox oil, fuel lines and spark plugs. The cost and effort are small compared with repairing an overheated powerhead.
Signs the pump needs attention
A reduced tell-tale stream is the warning most owners notice first. If the stream is intermittent, weak once the engine is warm, or missing altogether, stop and investigate before continuing. A blocked tell-tale outlet can also cause this, so carefully clear the outlet with suitable line or inspect the hose rather than assuming the impeller has failed.
An overheat alarm, temperature warning light, steam around the tell-tale, hot engine covers or a loss of power can all point to cooling trouble. Do not keep running the motor to see whether it improves. Shut it down, allow it to cool and check the water intakes for weed, plastic, mud or sand.
Other symptoms can be less obvious. The motor may be fine at idle but run hot at higher revs, or it may cool normally in a test tank but not under load on the water. A damaged impeller, worn pump cup, leaking water tube seal, blocked cooling passage or thermostat fault can each produce similar symptoms. Diagnosis matters.
Choosing the correct impeller and pump kit
Correct fitment comes first. Outboard impellers are not universal, even when two parts look close in size. Shaft diameter, keyway design, overall height, vane count and pump housing dimensions vary by make, model, horsepower and production year.
Use the outboard’s model and serial number where possible, not just its advertised horsepower. A 40 hp engine may have several different pump arrangements across model years. The identification label is commonly found on the transom bracket, swivel bracket or engine mounting area. If the label is damaged or missing, check the engine documentation before ordering.
Decide whether an impeller alone is enough or whether a complete water pump repair kit is the better buy. If the pump has been serviced on schedule and the housing is clean with no grooves, an impeller may be appropriate. If it is the first service in years, the motor has overheated, or the housing shows scoring, distortion or melted plastic, fit a kit with the related service parts.
A complete kit can prevent repeat work. Lower-unit removal takes time, and there is little value in reusing a tired gasket, wear plate or pump cup simply to save a small amount upfront. PARTSNZ stocks replacement marine parts locally, helping owners get the right maintenance item without waiting on an overseas order when a trip is approaching.
Fitting an outboard water pump impeller properly
The exact process differs between brands, so use the workshop manual for your model. Before starting, put the outboard in the correct gear position specified by the manual and note how the shift linkage disconnects. Incorrect reassembly can leave you without proper gear selection.
Once the lower unit is removed, take photos before dismantling the pump. Pay attention to the order and orientation of the housing, gaskets, wear plate, key and water tube. Check the old impeller carefully. Missing vane pieces may have travelled into the cooling system and should be traced, not ignored.
Clean mating surfaces without gouging aluminium components. Inspect the pump cup and wear plate for deep circular scoring, heat damage or corrosion. Light marks may be acceptable depending on the manual and part condition, but distinct grooves give water a path to slip past the vanes and reduce pumping efficiency.
Lubricate the new impeller only with the product recommended by the manufacturer or kit instructions. Do not use petroleum-based grease on rubber parts unless it is specifically approved. When installing the housing, turn the driveshaft in its normal running direction so the impeller vanes bend the right way. A dry or incorrectly folded impeller can be damaged before the engine ever reaches the ramp.
Make sure the water tube seats fully into the pump outlet during lower-unit refitting. This is a common point of trouble after a DIY impeller change. If the tube misses its grommet or sits crooked, the pump may work but send little or no water into the engine.
Test before heading offshore
After reassembly, run the outboard using an appropriate water supply. Flush muffs must seal properly over the intake screens and provide enough water volume. Some gearcases are better tested in a tank or barrel because of their intake arrangement, so follow the manufacturer’s guidance.
Check for a consistent tell-tale stream, but also allow the engine to warm to normal operating temperature. Watch for alarms, warning lights and unusual heat. Then carry out a cautious on-water test before relying on the boat for a long run or offshore trip.
If there is still no tell-tale after an impeller replacement, do not immediately strip the pump again. First check the tell-tale hose and outlet for blockage, then confirm the water tube has seated correctly. If the engine is overheating, stop running it and investigate the thermostat, cooling passages and pump assembly methodically.
Avoid the habits that shorten impeller life
Never run an outboard dry, even briefly. The impeller depends on water for lubrication and cooling, and a few dry seconds can mark the vanes or pump housing. Before launching, check that intake screens are clear and avoid prolonged running in shallow, sandy water where the pump can ingest abrasive material.
After salt-water use, flush the engine as the manufacturer recommends. Flushing will not repair a worn impeller, but it helps reduce salt build-up in the cooling system and makes future maintenance less difficult. Keep a record of the date, engine hours and parts fitted so the next service is planned rather than guessed.
A water pump impeller is not a part to stretch for one more season. Replacing it at the right interval gives you one less concern at the ramp, and more confidence when the shoreline is a long way behind you.
