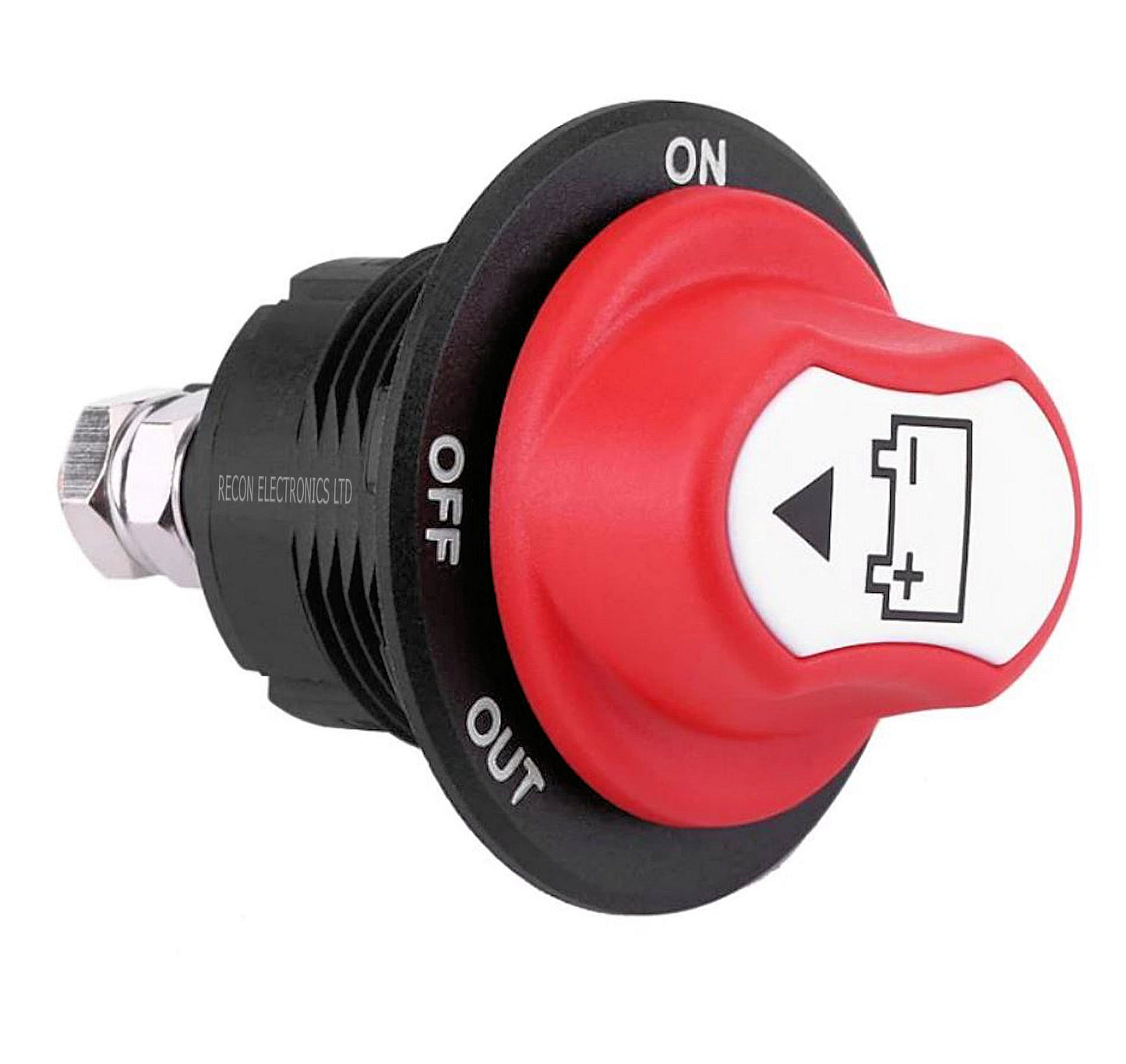

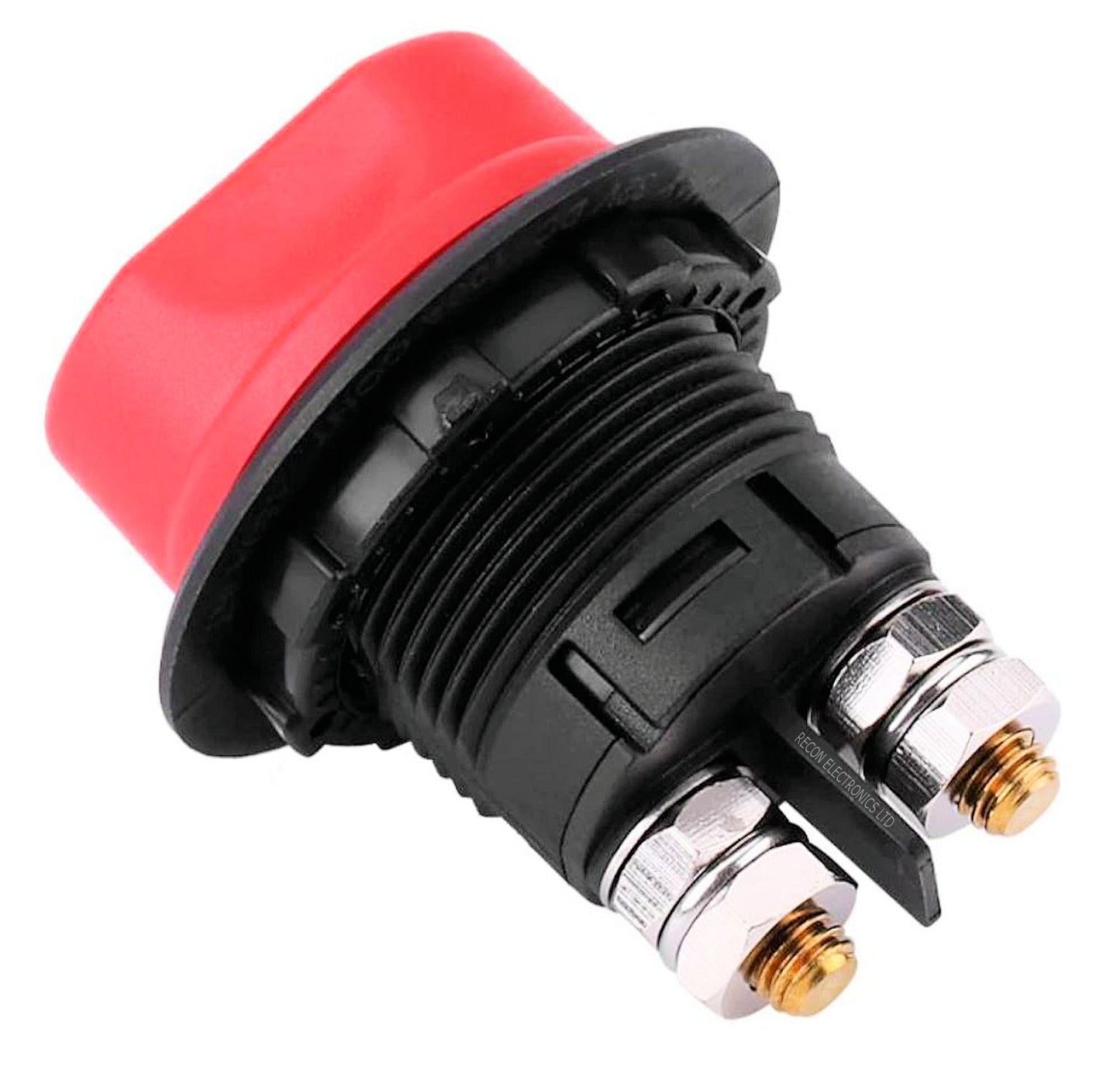

Battery 100 amp Continuous Master Isolating Switch -12v - 32v

Premium New Aftermarket & OEM Parts From PARTSNZ

This Battery Master Isolating Switch can be utilized for various applications and serves as a measure of security with its detachable knob.

This switch is flush-mounted which is often a better option.

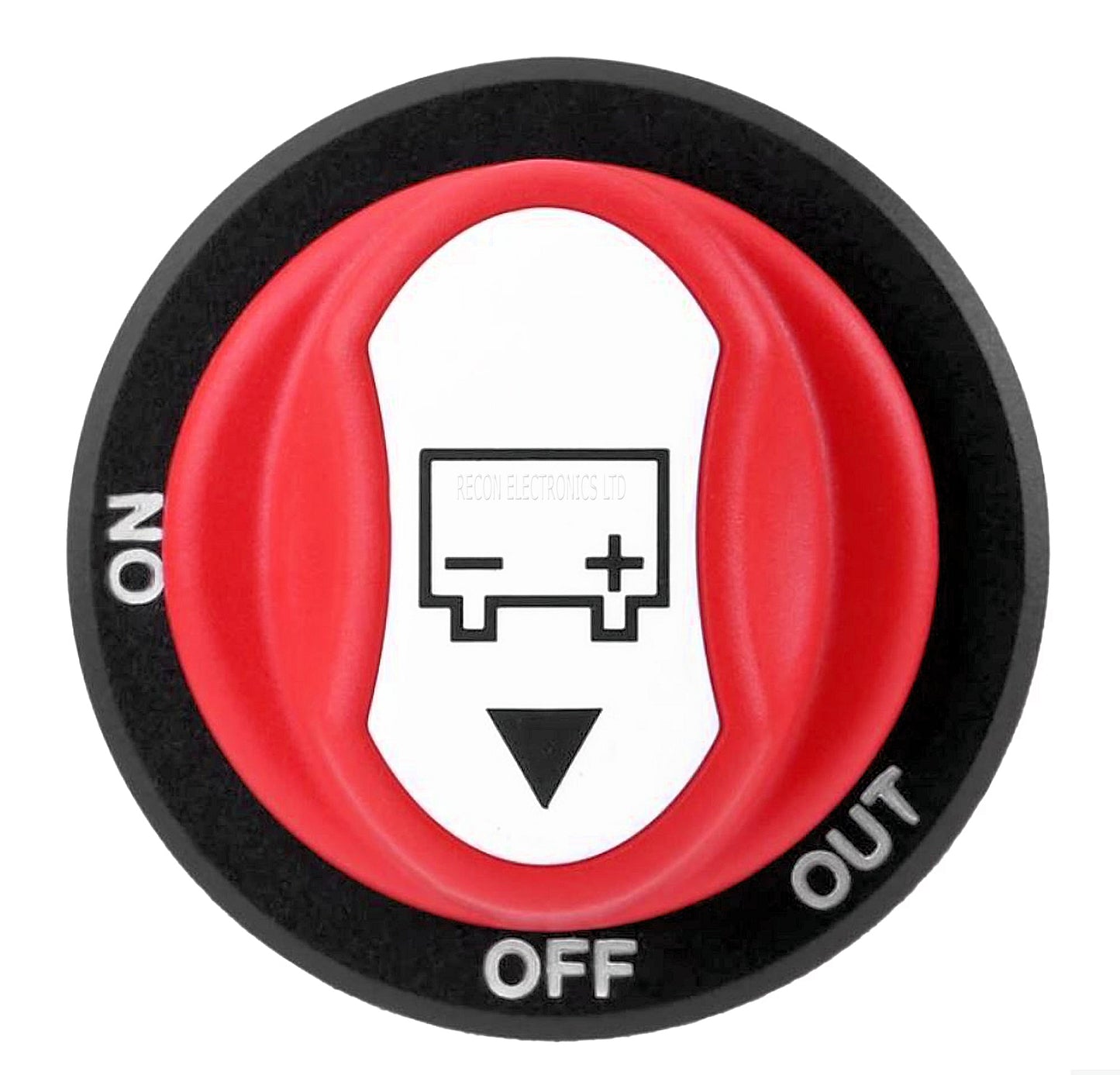

The control knob cannot be removed while in an On or Off position, however, it can be removed by switching to the Out position.

 SPECIFICATIONS:

Material: ABS + metal
Color: black + red + white
Continuous Rating: 100Amps
Voltage: Max.32V DC
Intermittent Rating: 150Amps
Cranking Rating: 500Amps 5 sec.
Contact Resistance: 50m ohm Max.
Insulation Resistance: DC 500V 100M ohm Min
Dielectric Strength: AC 1000V 1 minute, DC 2000V 1 minute
Operating Temperature: -30℃ ~ +60℃

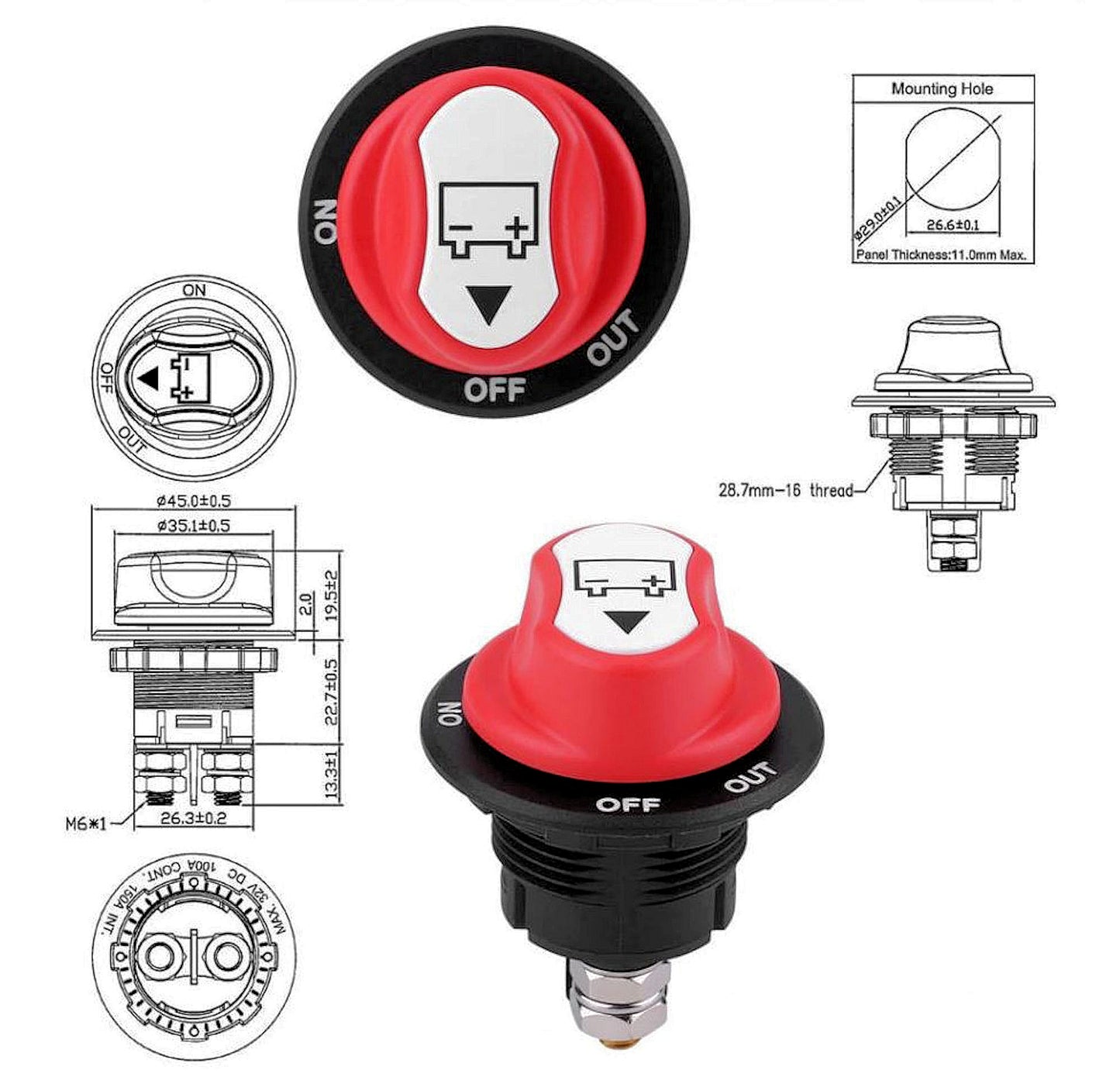

Please check the photos for measurements.

SKU 1299
