Battery 300 amp Master Isolating Switch 12v - 48v

Battery 300 amp Master Isolating Switch 12v - 48v

Regular price $49.50 NZD
Regular price Sale price $49.50 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Premium New Aftermarket & OEM Parts From PARTSNZ

This master isolating switch battery is versatile and comes with a detachable knob for added security.

FEATURES:

Contour Lock system with removable side covers for connection from all sides.
This allows the switch unit to be a standalone unit or placed together with other switches.
The control knob cannot be removed while in an ON position, however, it can be removed by switching to an OFF and an anti-clockwise 45° position.

SPECIFICATIONS:

Operation ON / OFF
Max. Voltage 48V DC
Material Description Impact Impact-resistant ABS plastic and Nickel-plated studs & nuts

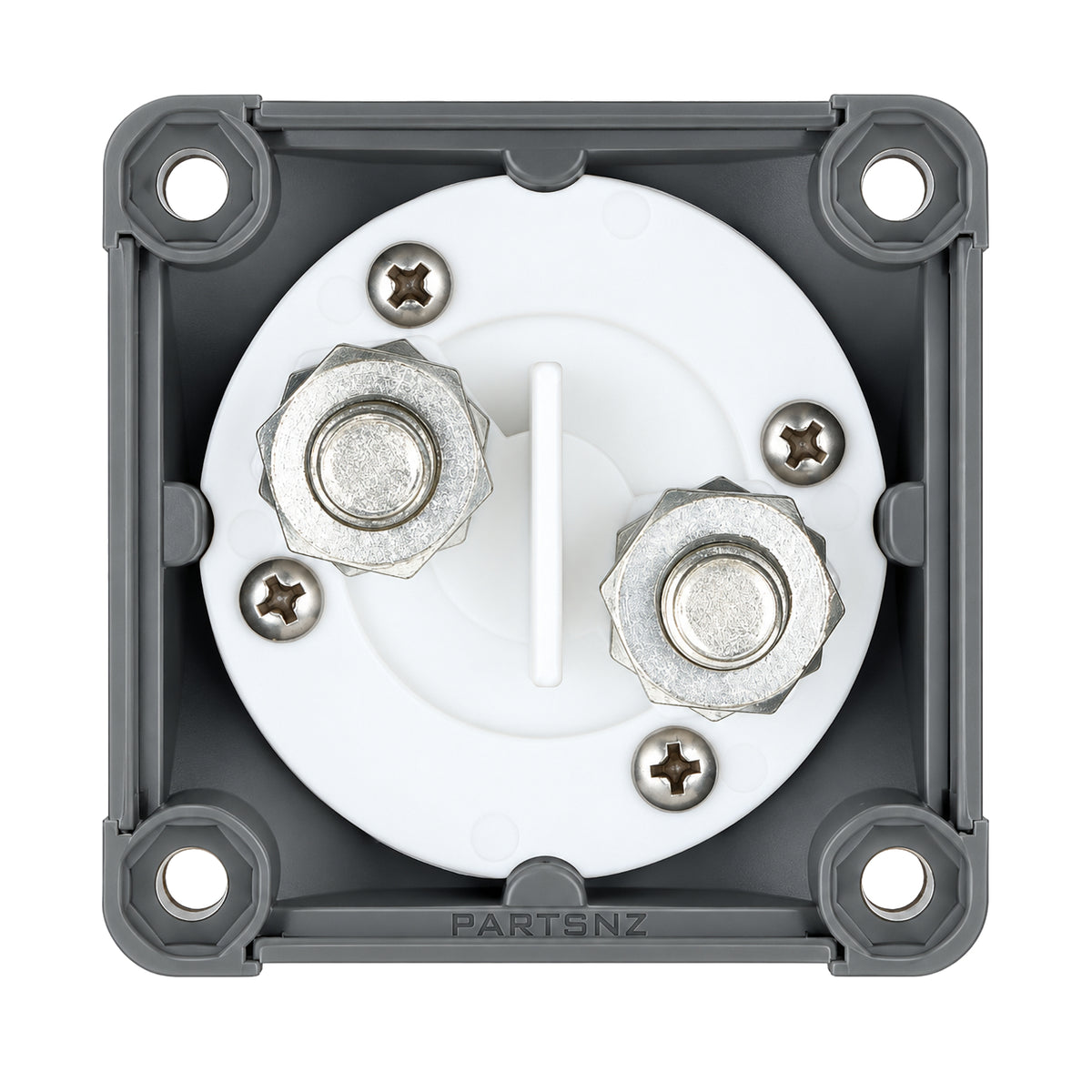

Termination Stud Size: 2 heavy-duty 10mm stud terminals, 17mm nuts & lock washers
Degree of Protection IP 56Max
Load Continuous 300 Amps
Max. Load Intermittent 455 Amps (5 minutes)
Max. Load Cranking 1250 Amps (10 seconds)

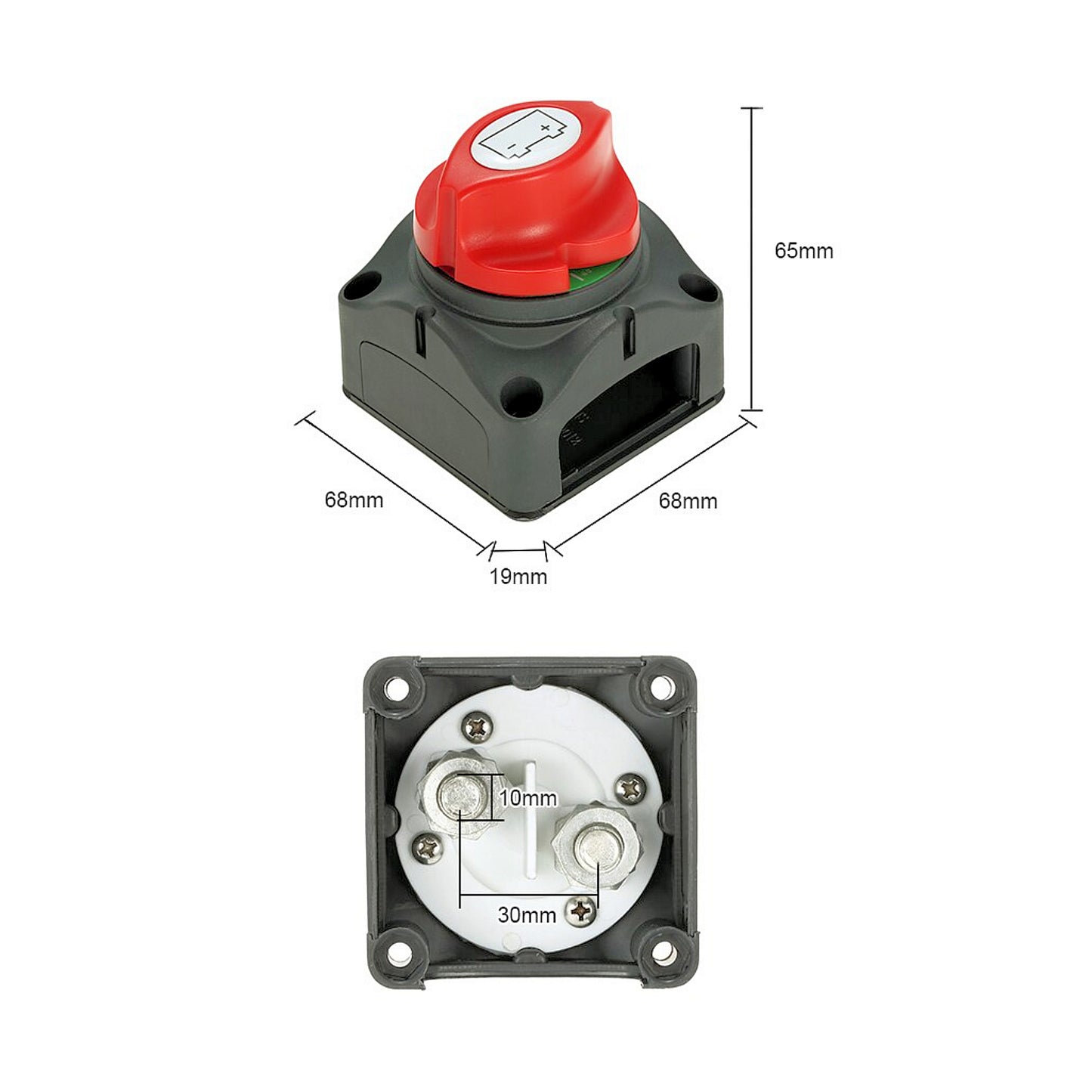

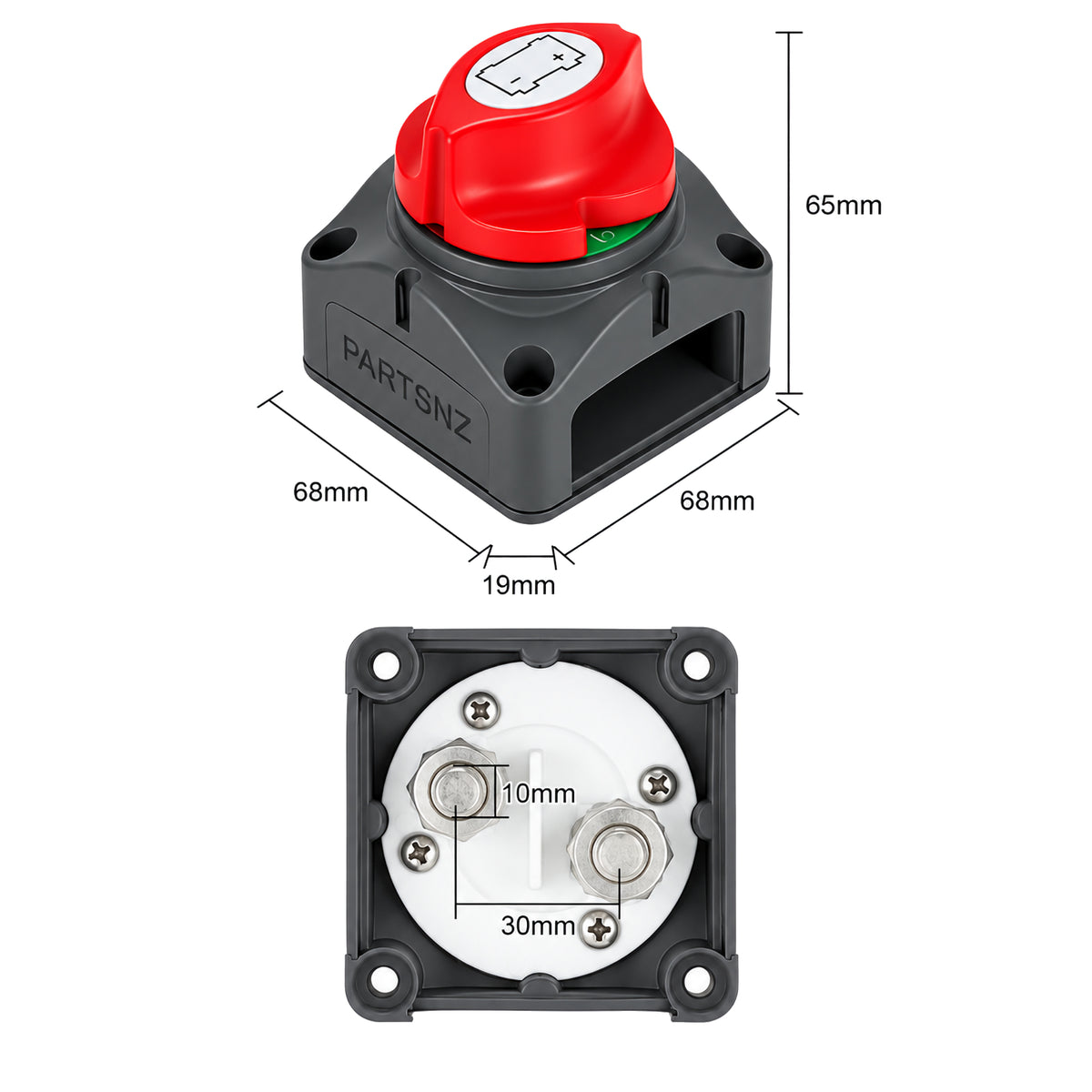

Please look at the photos for measurements.

SKU 453
