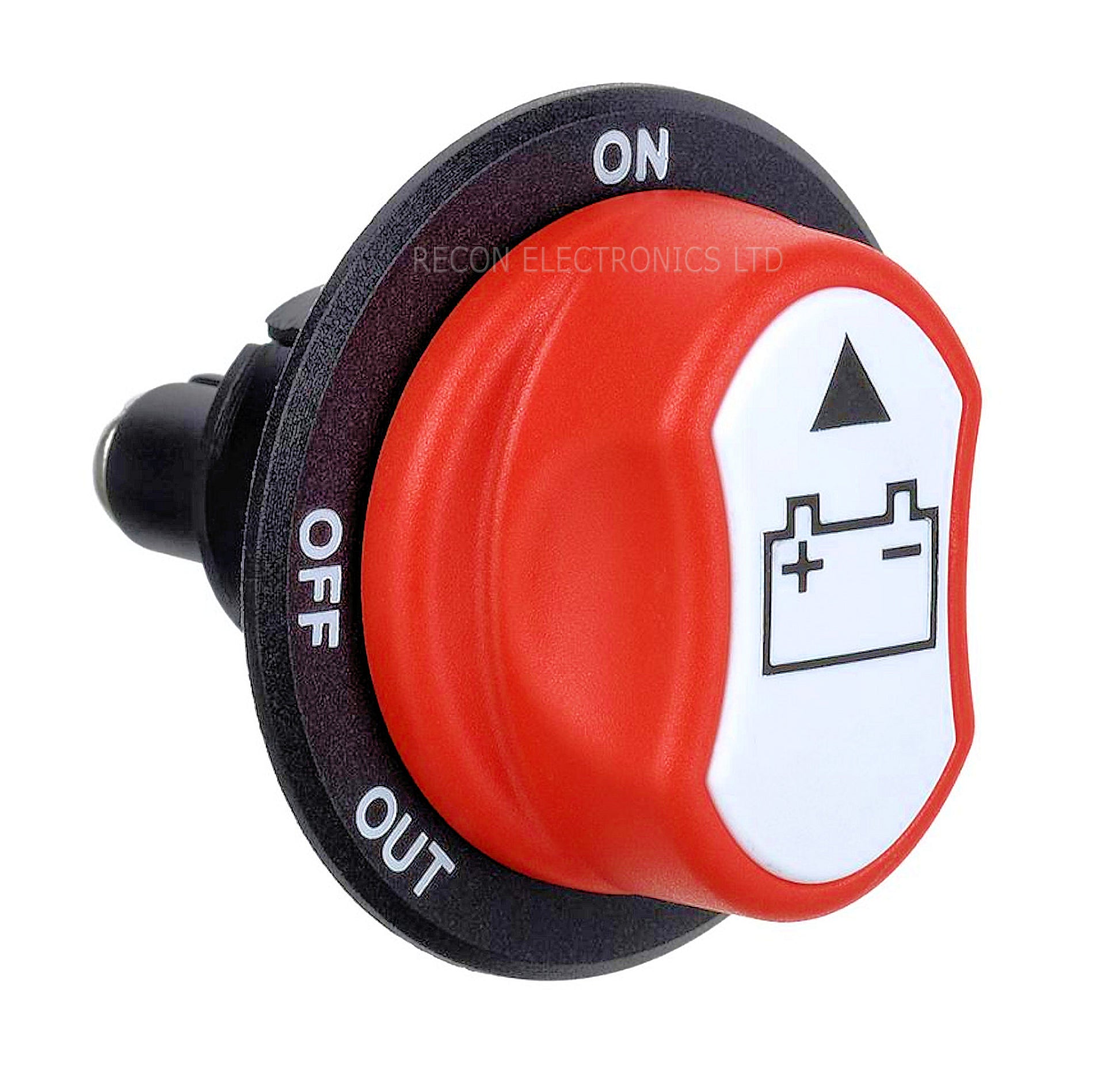

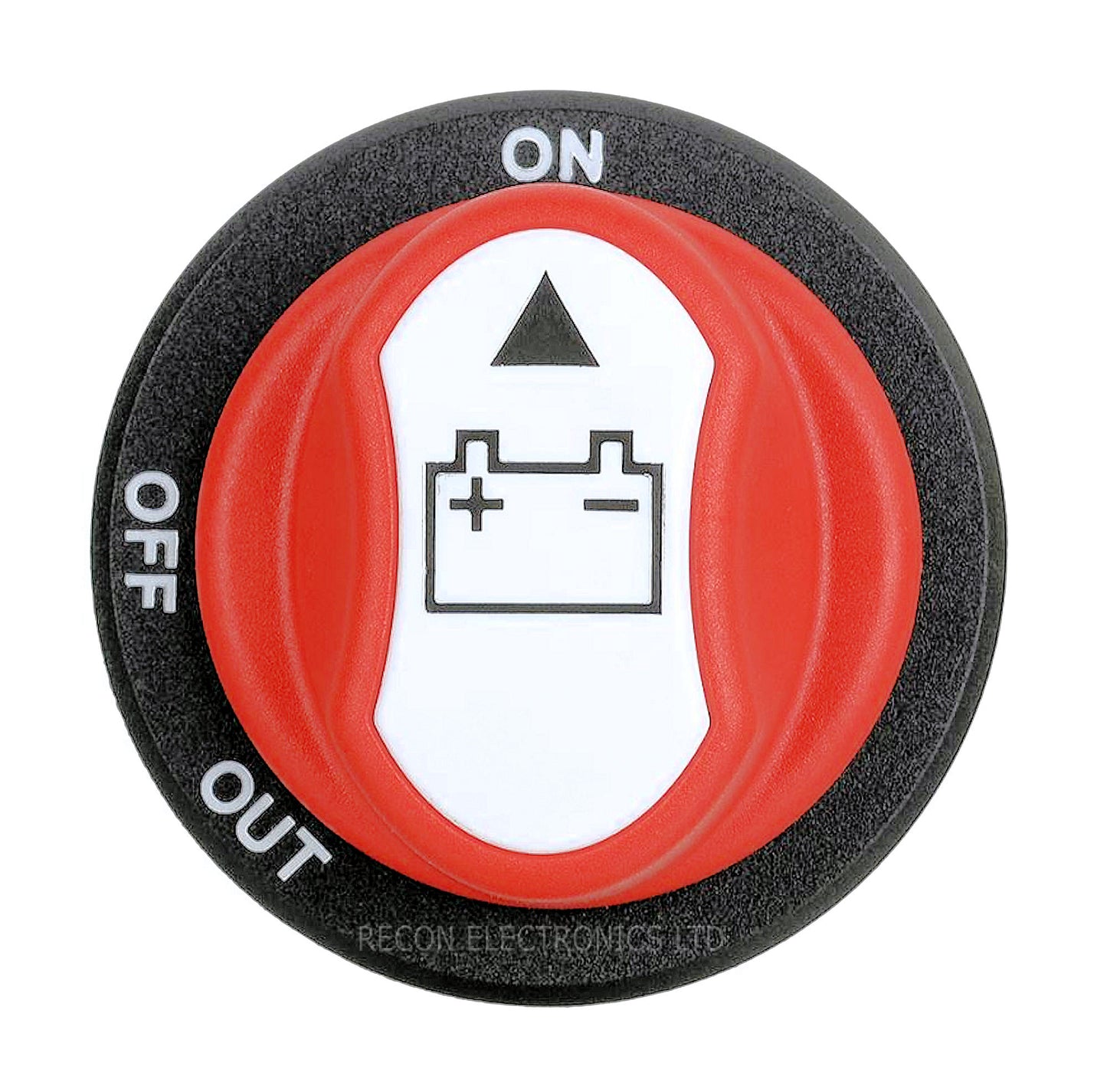

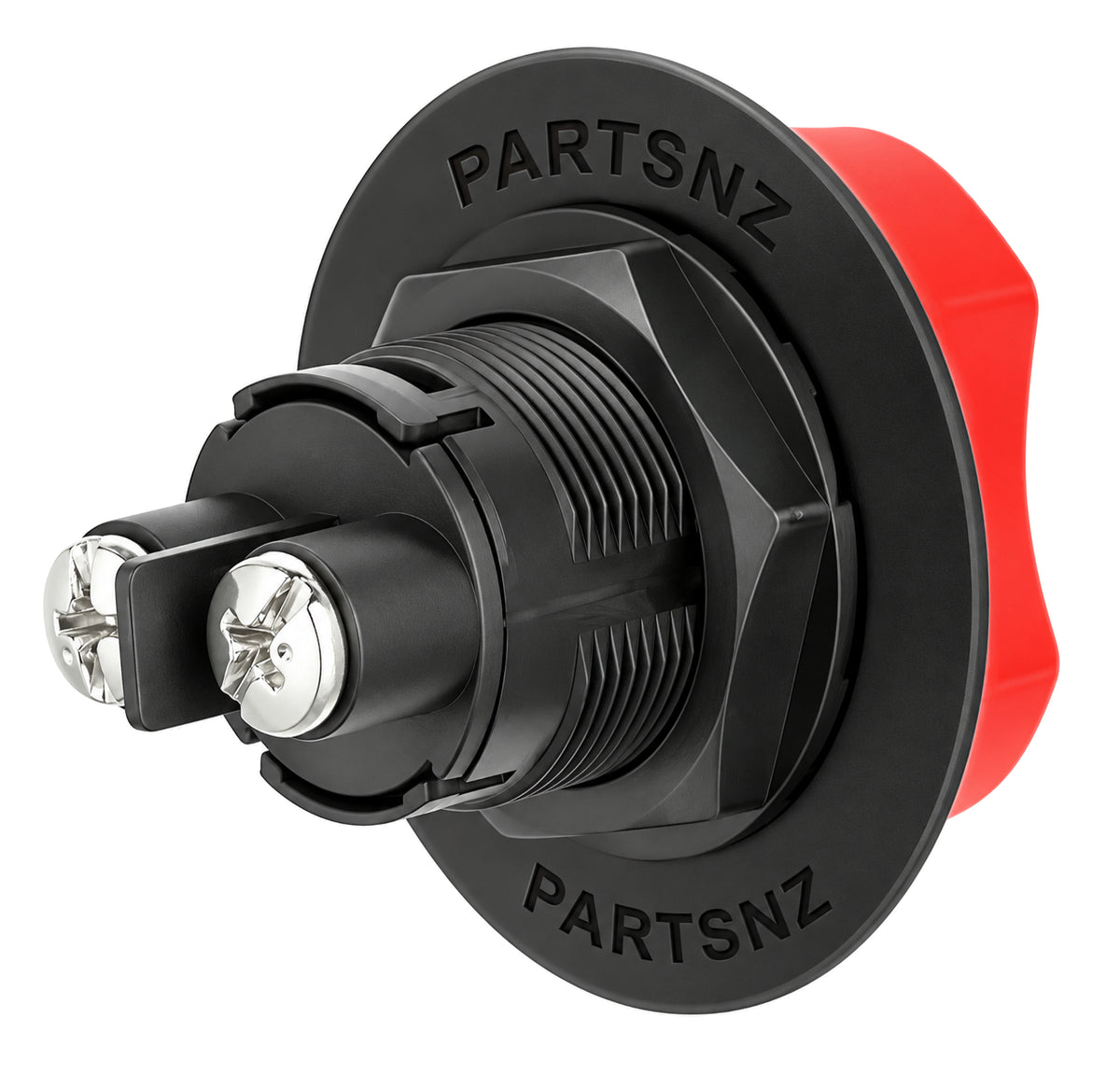

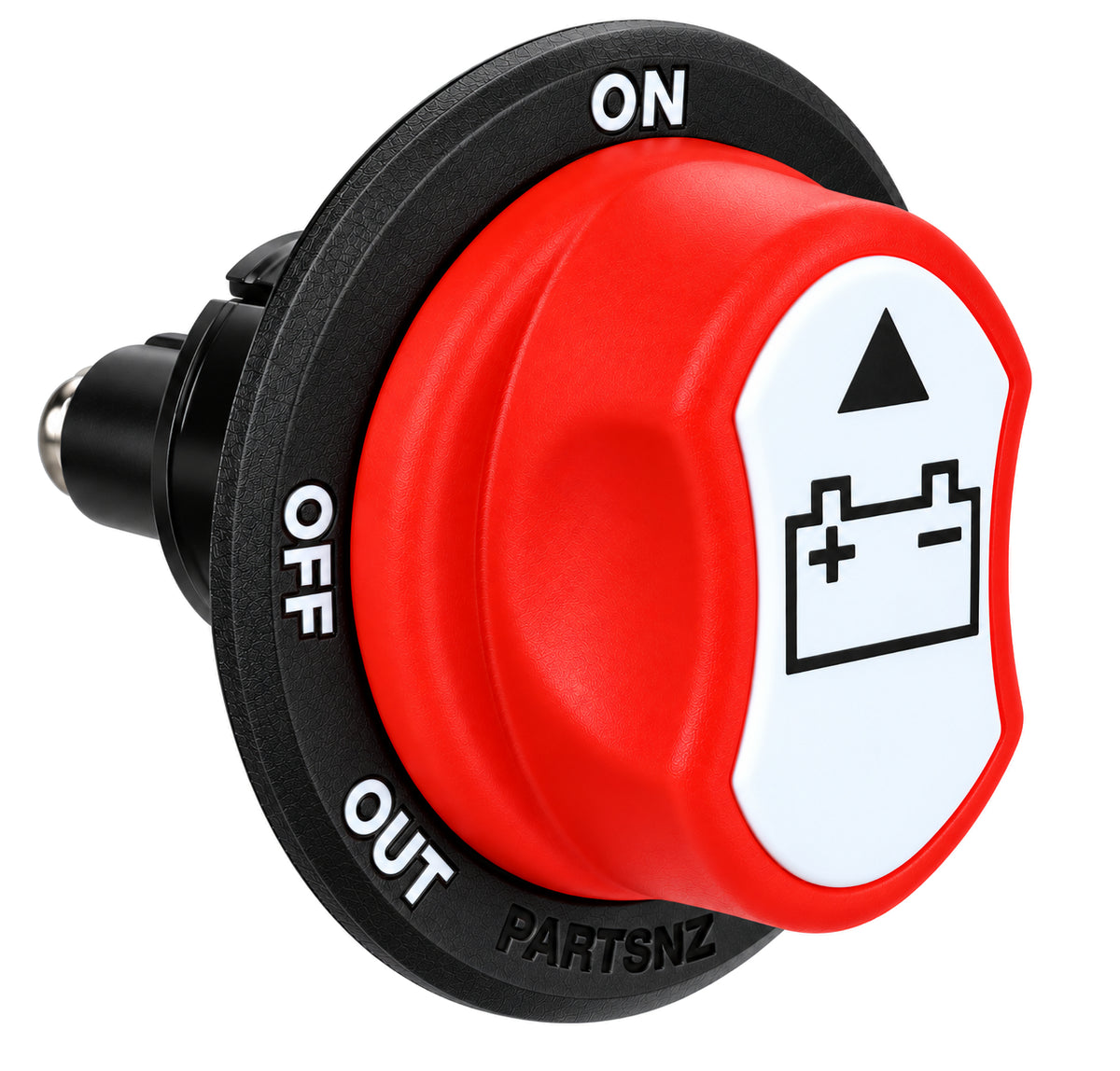

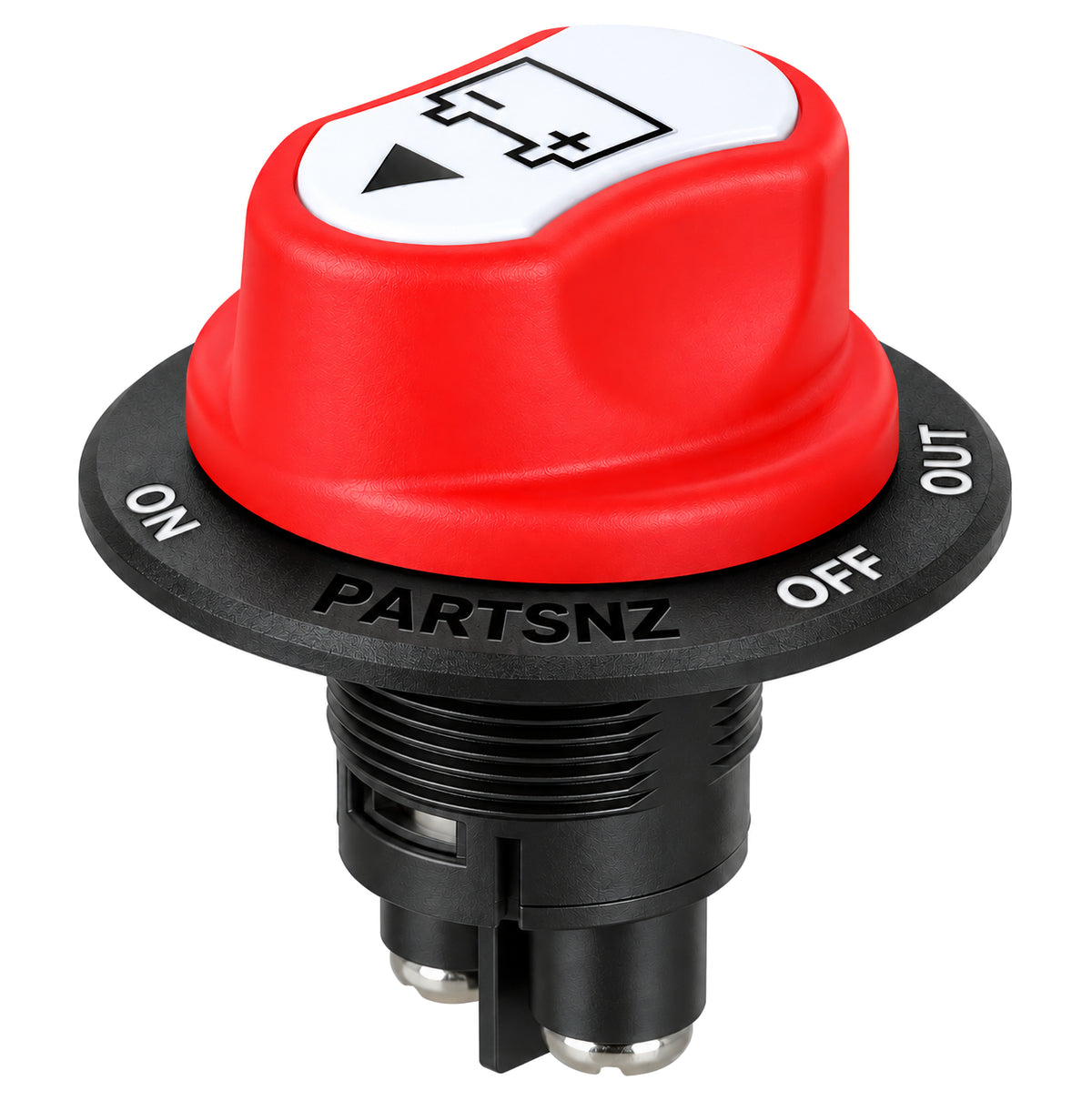

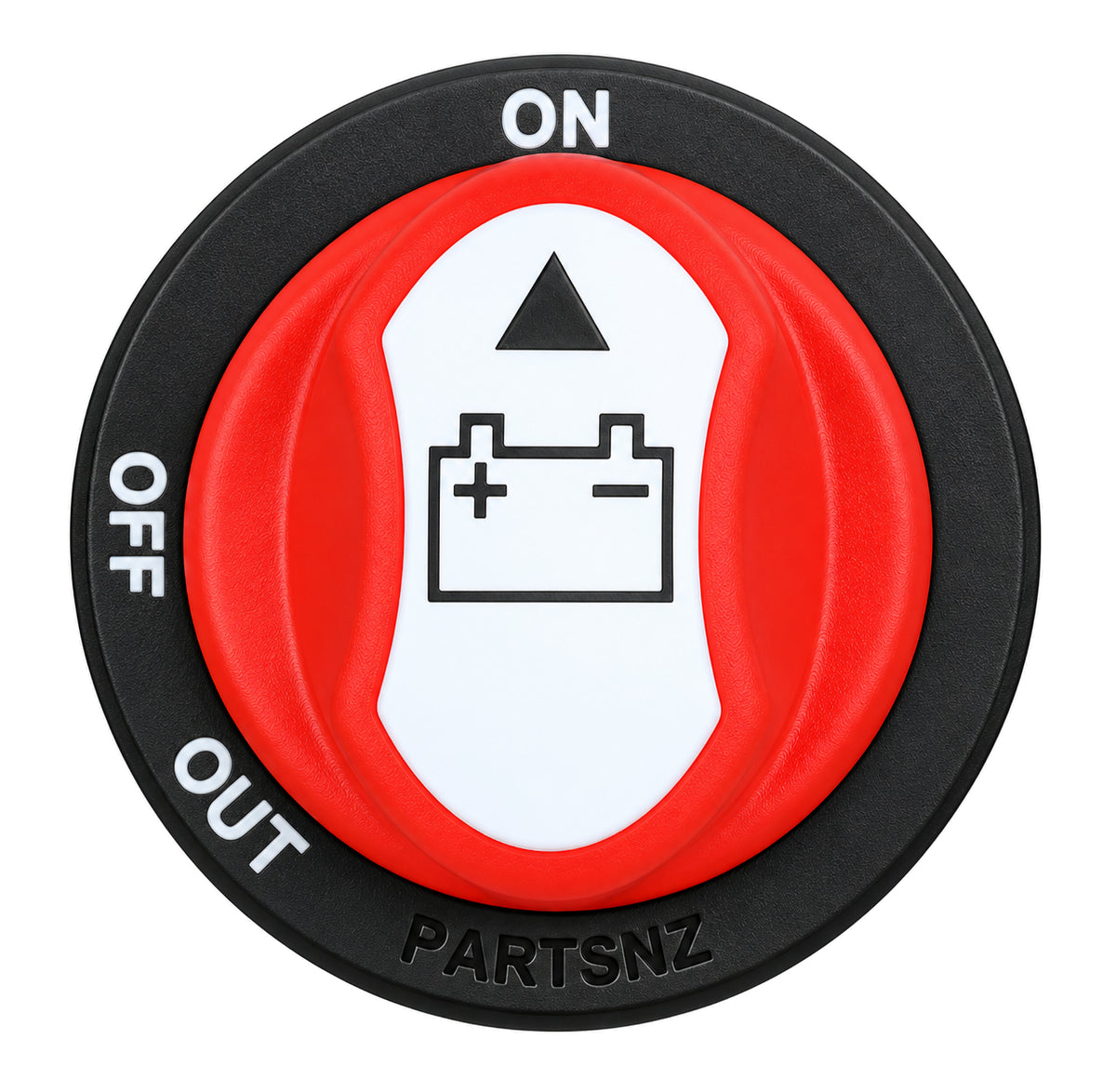

Battery 50 amp Continuous Master Isolating Switch 12v - 50v

Premium New Aftermarket & OEM Parts From PARTSNZ

This Battery Master Isolating Switch can be utilized for various applications and serves as a measure of security with its detachable knob.

This switch is flush-mounted which is often a better option.

FEATURES:

Flush mount

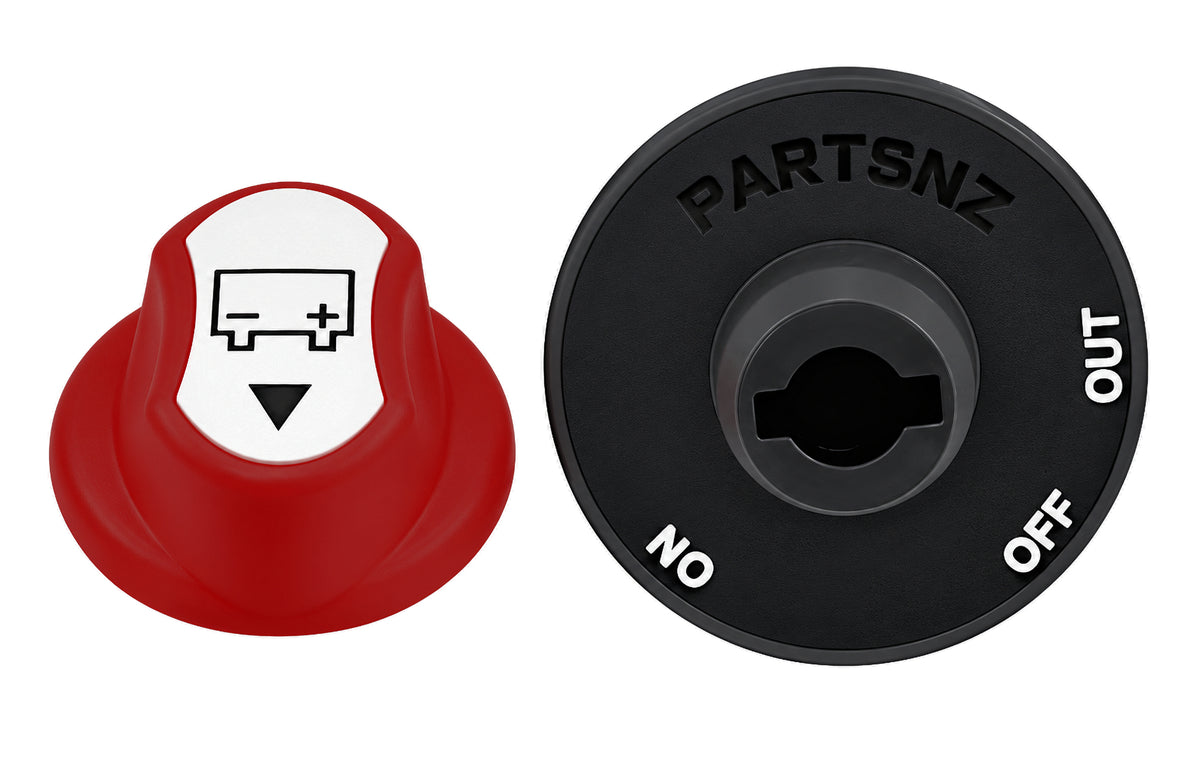

The control knob cannot be removed while in an On or Off position, however, it can be removed by switching to the Out position.

SPECIFICATIONS:

Material: Super tough ABS
Continuous rating: 50 Amps 50V/DC Max.
Intermittent rating: 75 Amps
Cranking Rating: 300 Amps 5 sec.
Contact resistance: 50m ohm Max
Insulation resistance: DC 500V 100M ohm Min
Dielectric strength: AC 1000V 1 Minute, DC 2000V 1 minute
Operating temperature: -30°C~60°C

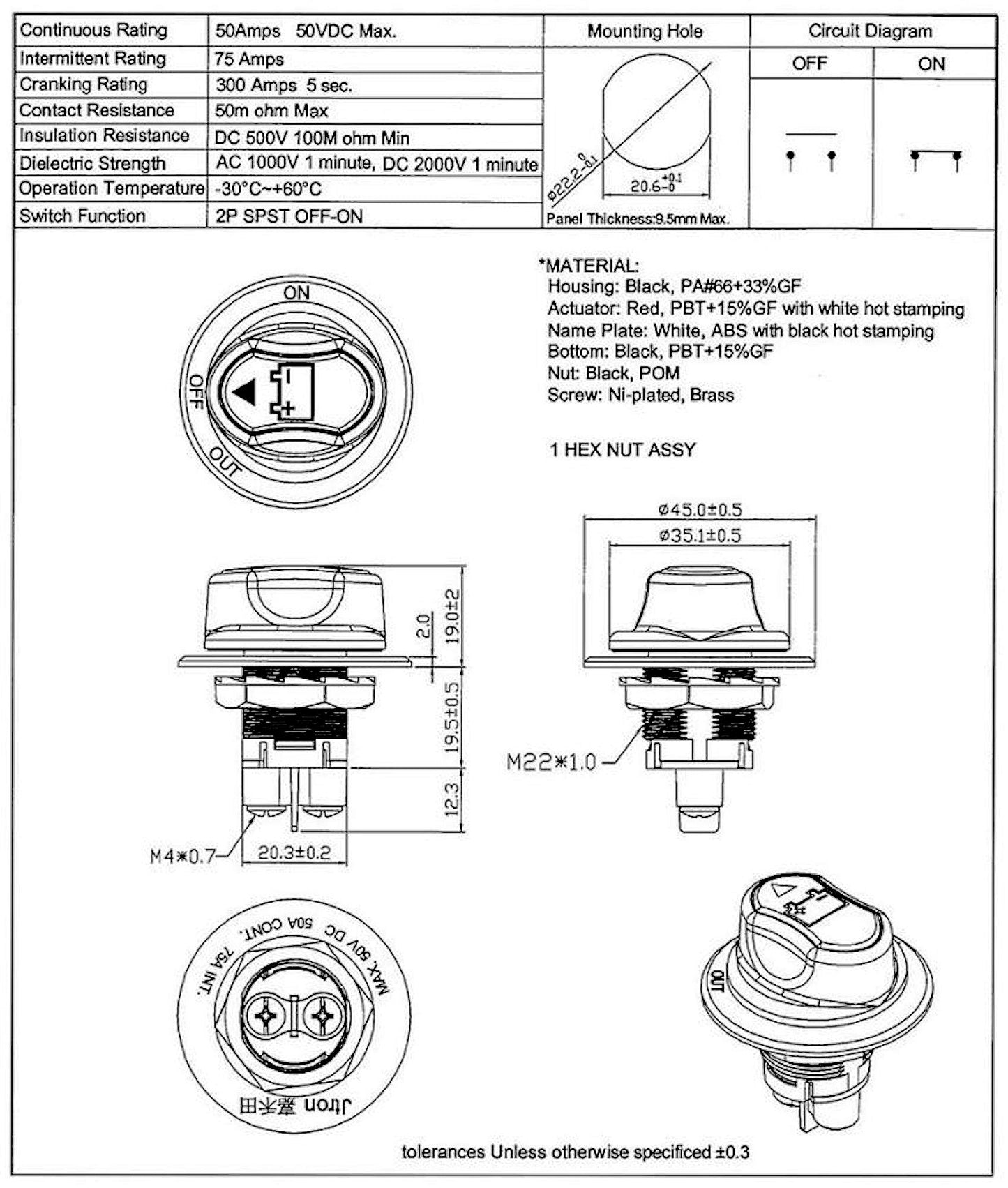

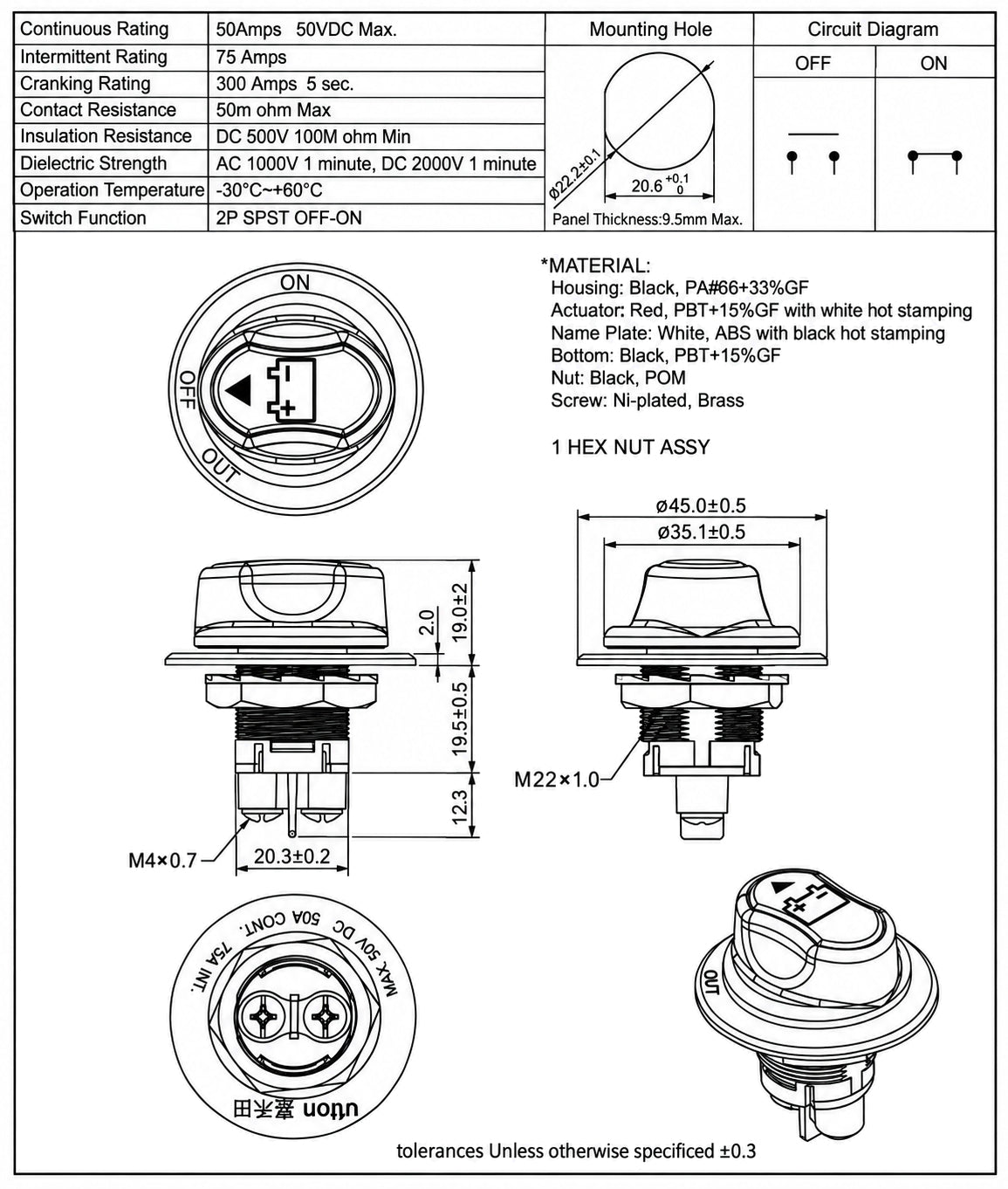

Please check the photos for measurements.

SKU 653
