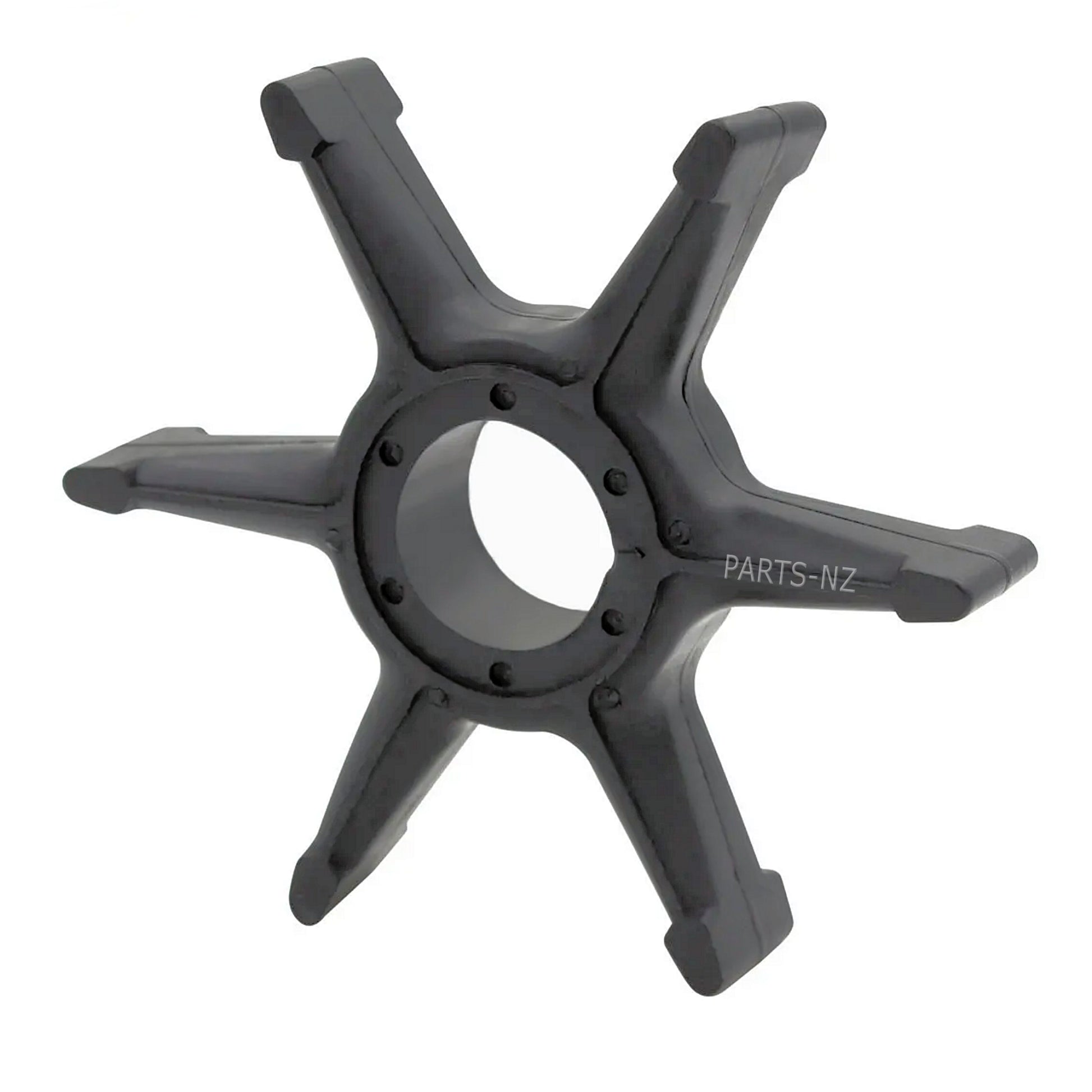

Yamaha - Mercury - Mariner Outboard Motor Water Pump Impeller
Yamaha - Mercury - Mariner Outboard Motor Water Pump Impeller
Premium New Aftermarket & OEM Parts From PARTSNZ
For all marine engines, it is recommended that the water pump is inspected and the impeller or rotor is replaced annually or every 100 hours of use, whichever is soonest.
FITS depending on the year of manufacture:
YAMAHA:
25hp; 30hp 2-Stroke 1984-87
CV25 (25hp); CV30 (30hp) 2-Stroke 1989-90
C25 (25hp; C30 (30hp) 2-Stroke 1991-97
MERCURY MARINER OUTBOARD ENGINES - 2 STROKE:
20HP 20C Mode Code 6A9
30HP 30A W30(W-MARATHON)
25HP 25C (through propeller exhaust)
28HP Mode Code 664
YAMAHA OEM part numbers:
689-44352-00-00 / 689-44352-03-00 /689-44352-02-00; Sierra 18-3067
MERCURY MARINER OEM part numbers:
47-81604M / 47-84797M
SPECIFICATIONS:
Number of Blades: 6
Height: 13.02mm
External Impeller Overall Diameter: 68.52mm
Internal shaft insert Diameter: 16.03mm
If you are uncertain about the compatibility of this part with your outboard motor, please provide us with your model number and year. We can assist you in finding the right one.
SKU 831-1
